Home
>>
Mazda
>>
1991
>>
MX-5 Miata L4-1597cc 1.6L DOHC
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse Block
>>
Locations
>>
Connector Locations
>>
Fuse Panel
Fuse Panel

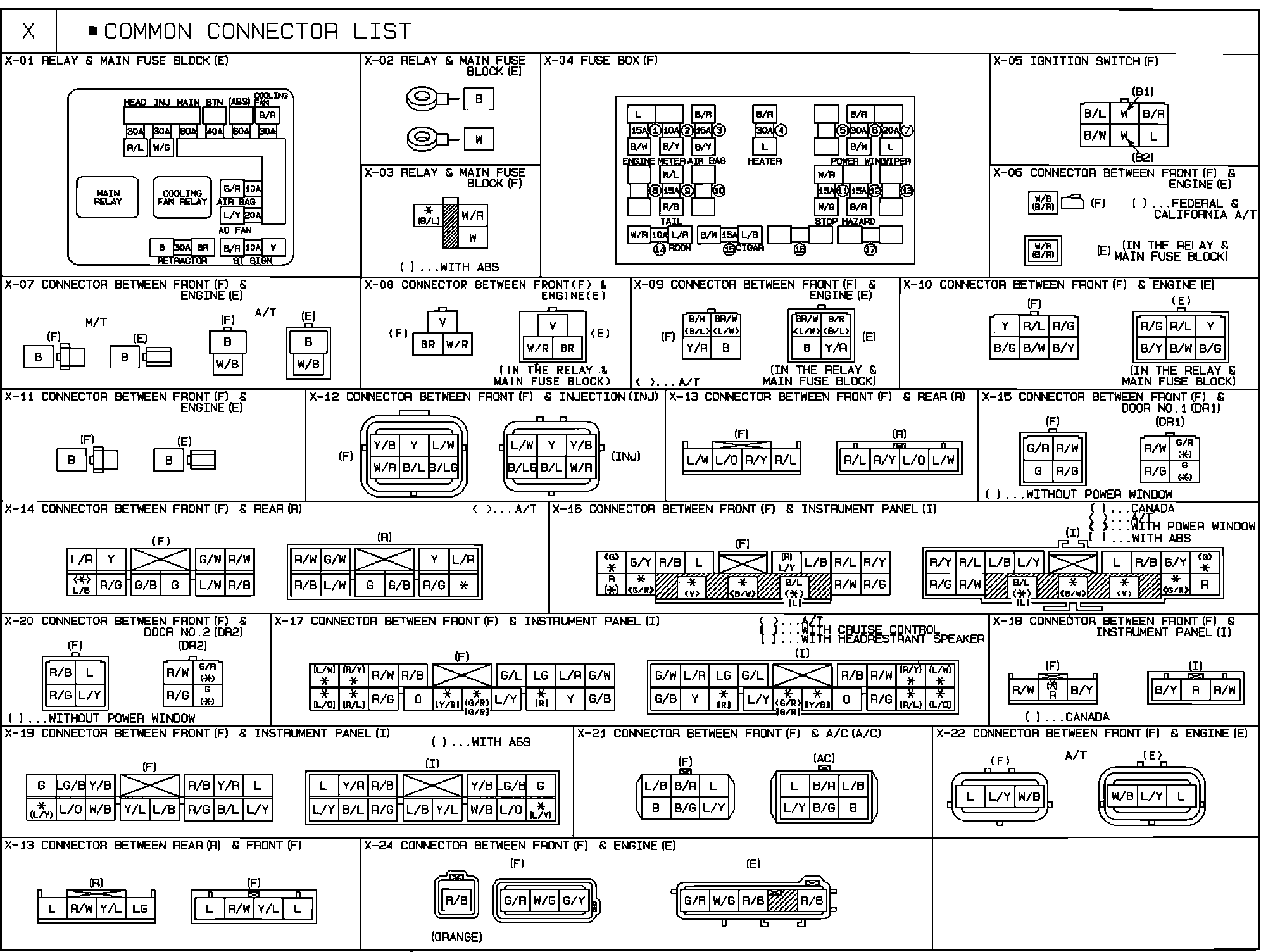

Common Connector List:
