Transmission Case

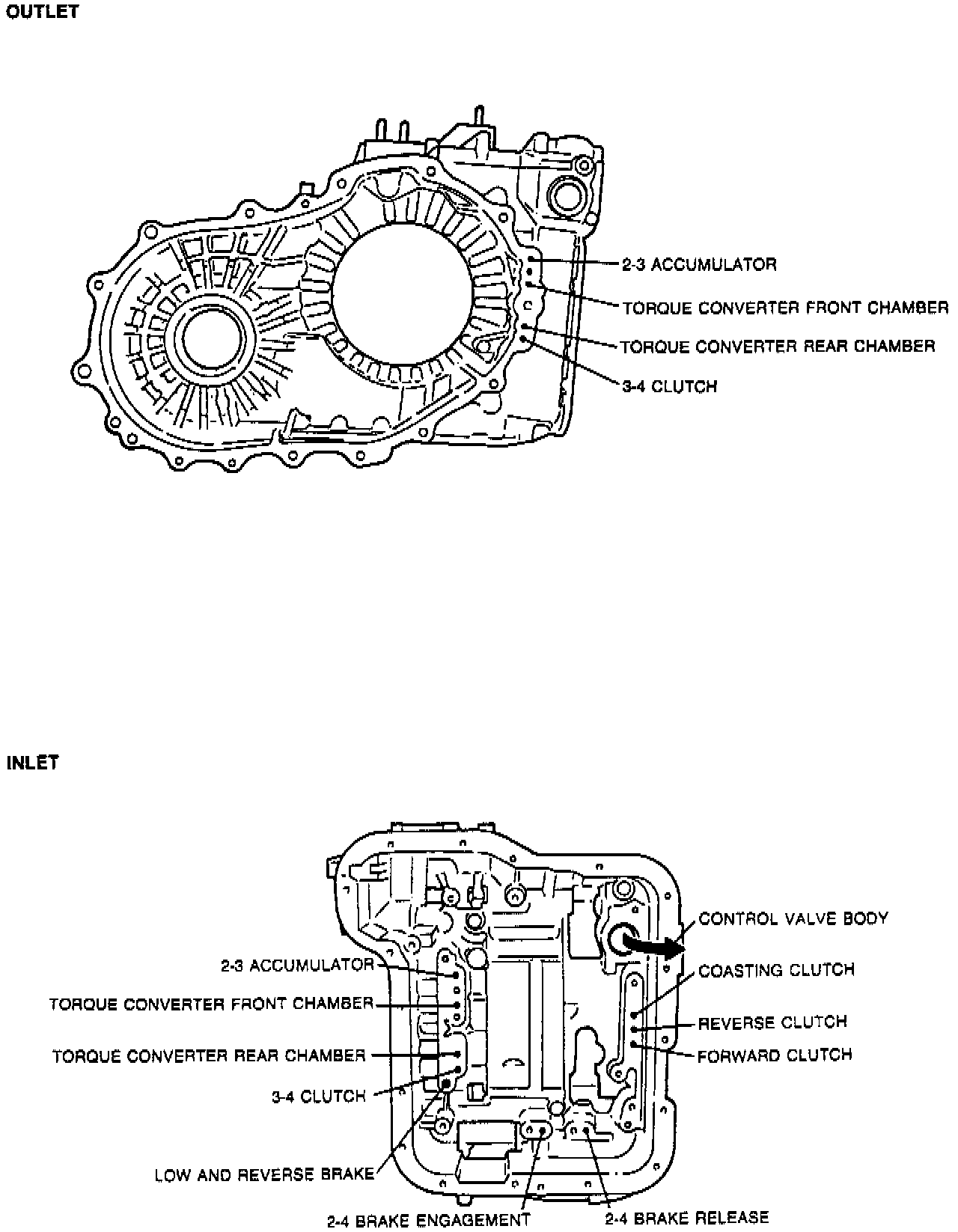

Electronic Transaxle Case Fluid Passages (Part 1):

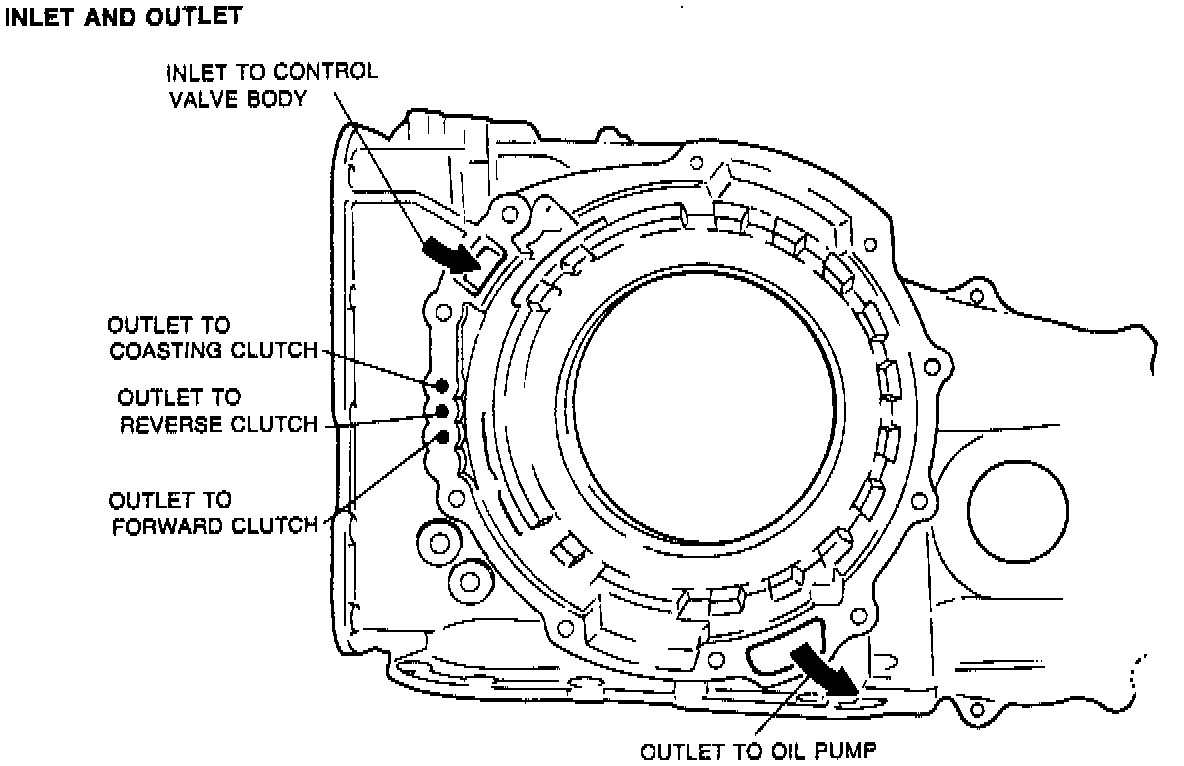

Electronic Transaxle Case Fluid Passages (Part 2):
