Wiring Diagram

PART 1 OF 3

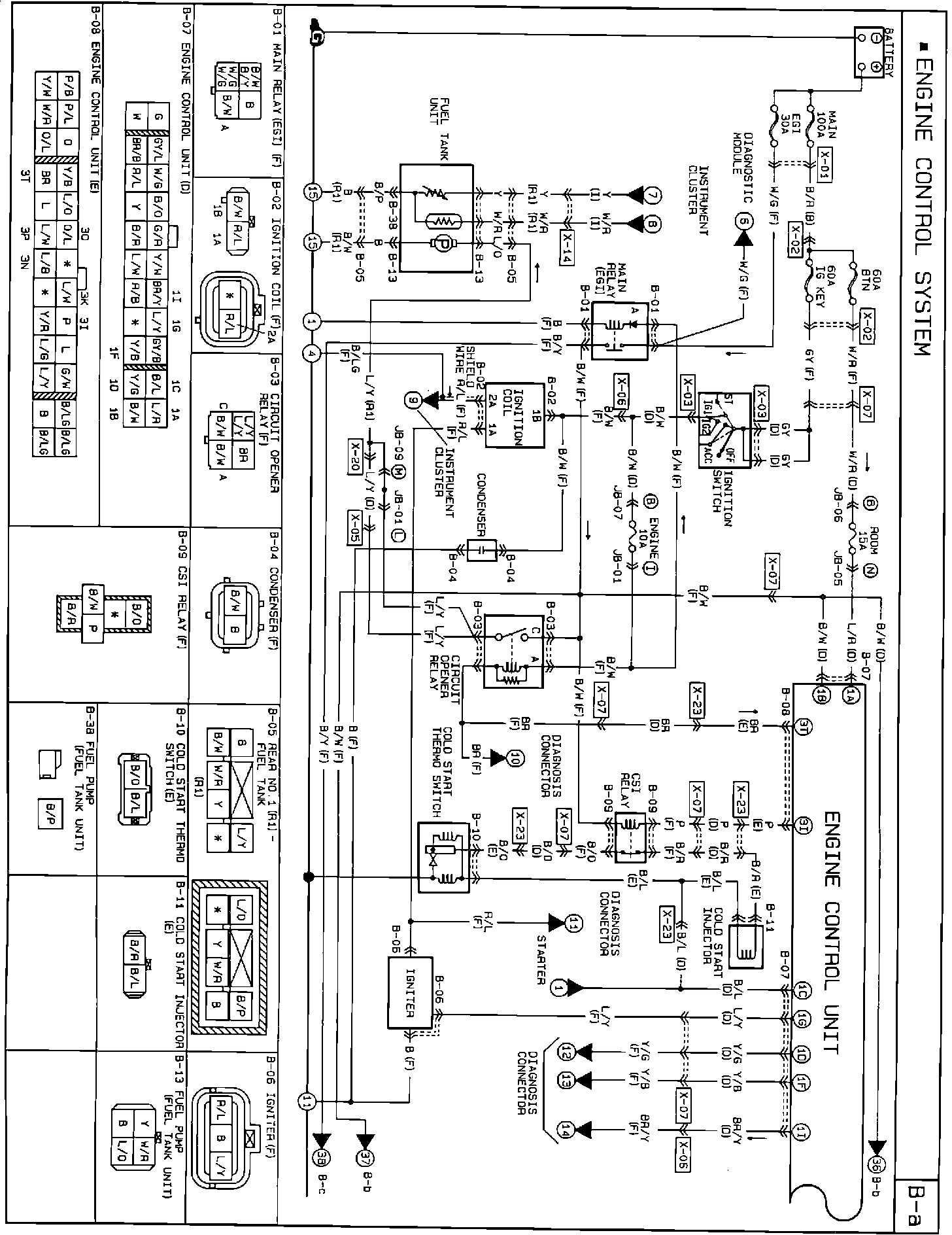

System Electrical Schematic (1 Of 3):

PART 2 OF 3

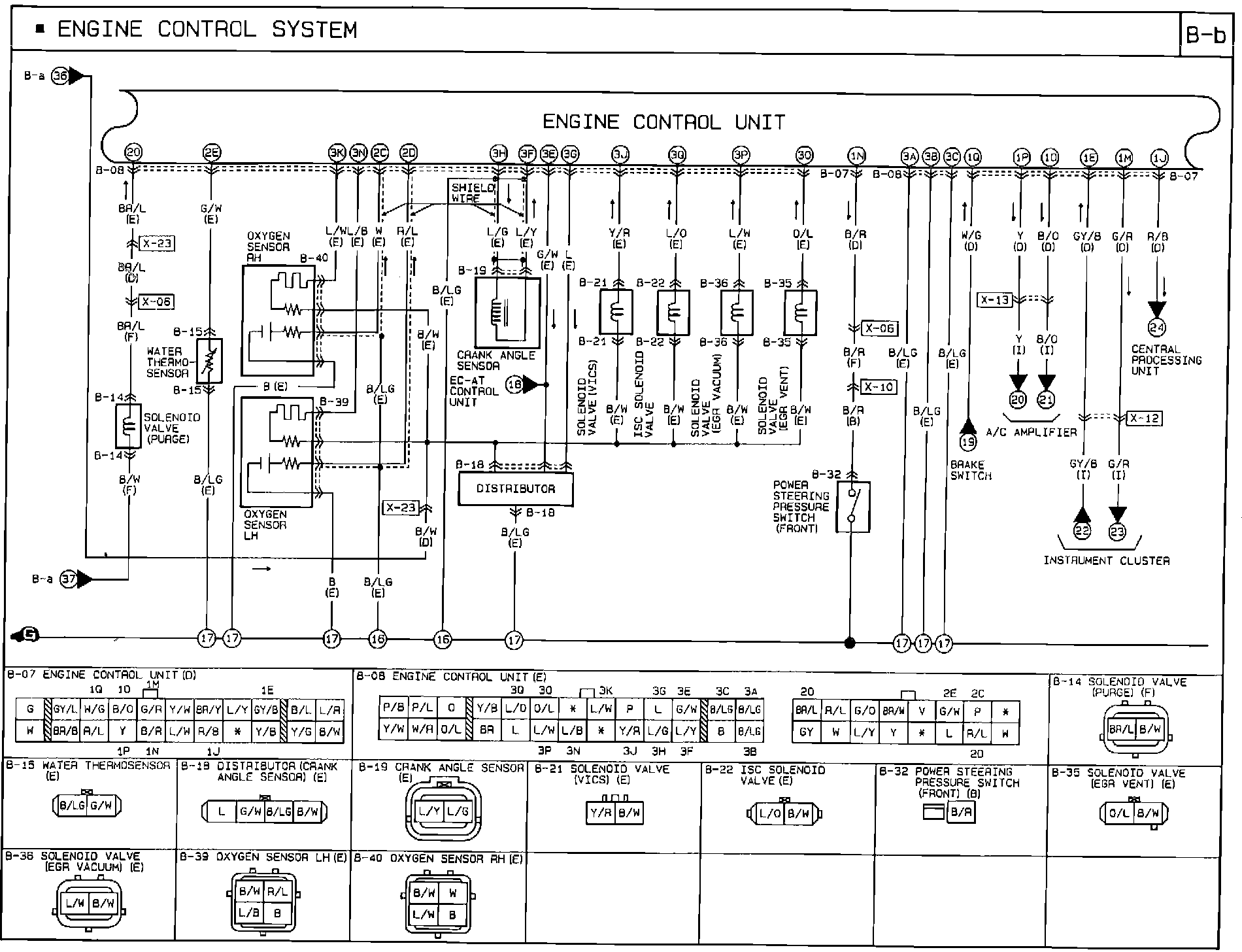

System Electrical Schematic (2 Of 3):

PART 3 OF 3

System Electrical Schematic (3 Of 3):

For more information on electrical connectors, wiring color codes, harness locations etc., refer to CHASSIS ELECTRICAL DIAGRAMS.
