Home >> Mazda >> 1992 >> 929 V6-3.0L DOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radio/Stereo >> Less CD Changer

Less CD Changer

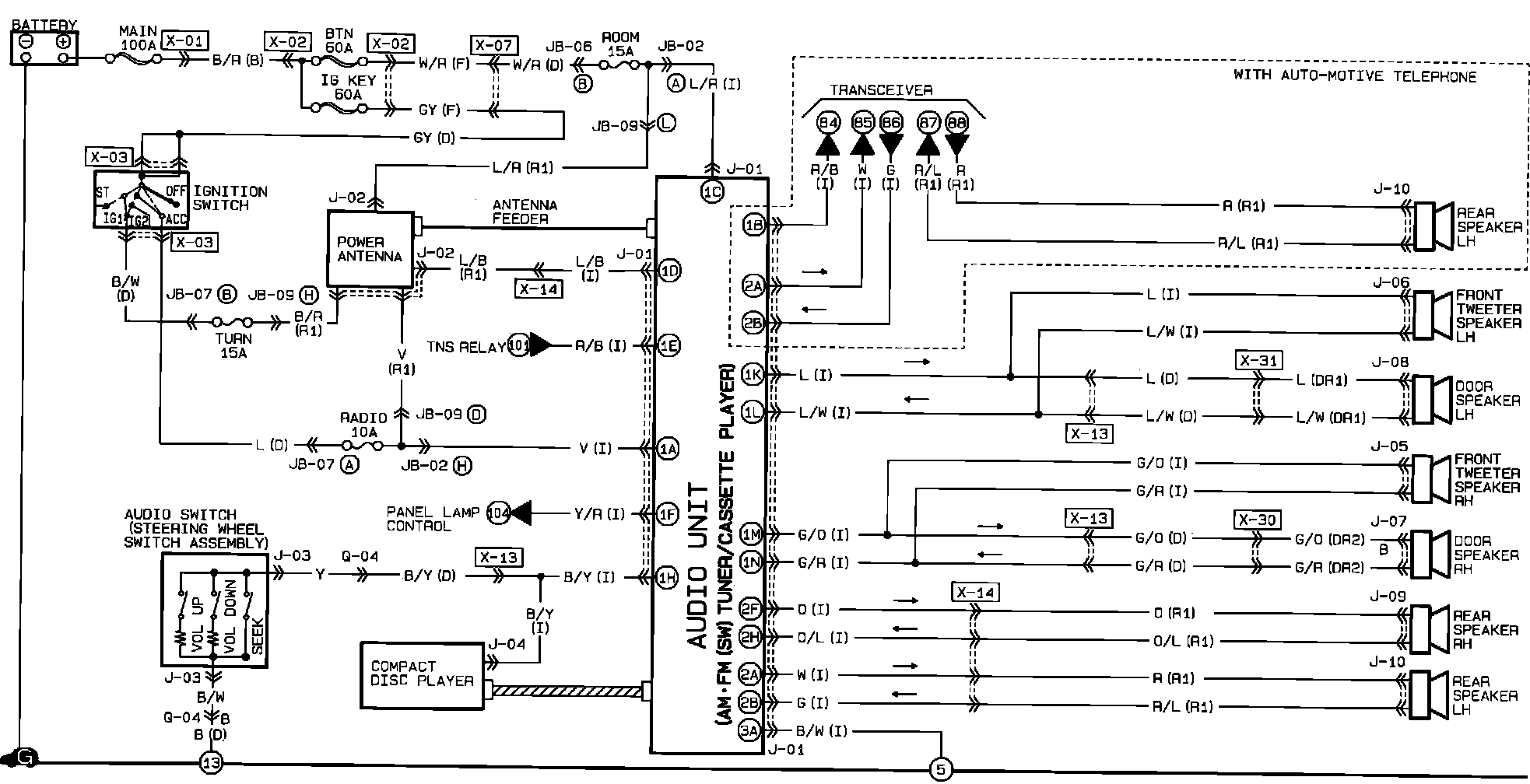

Radio. Less CD Changer.:

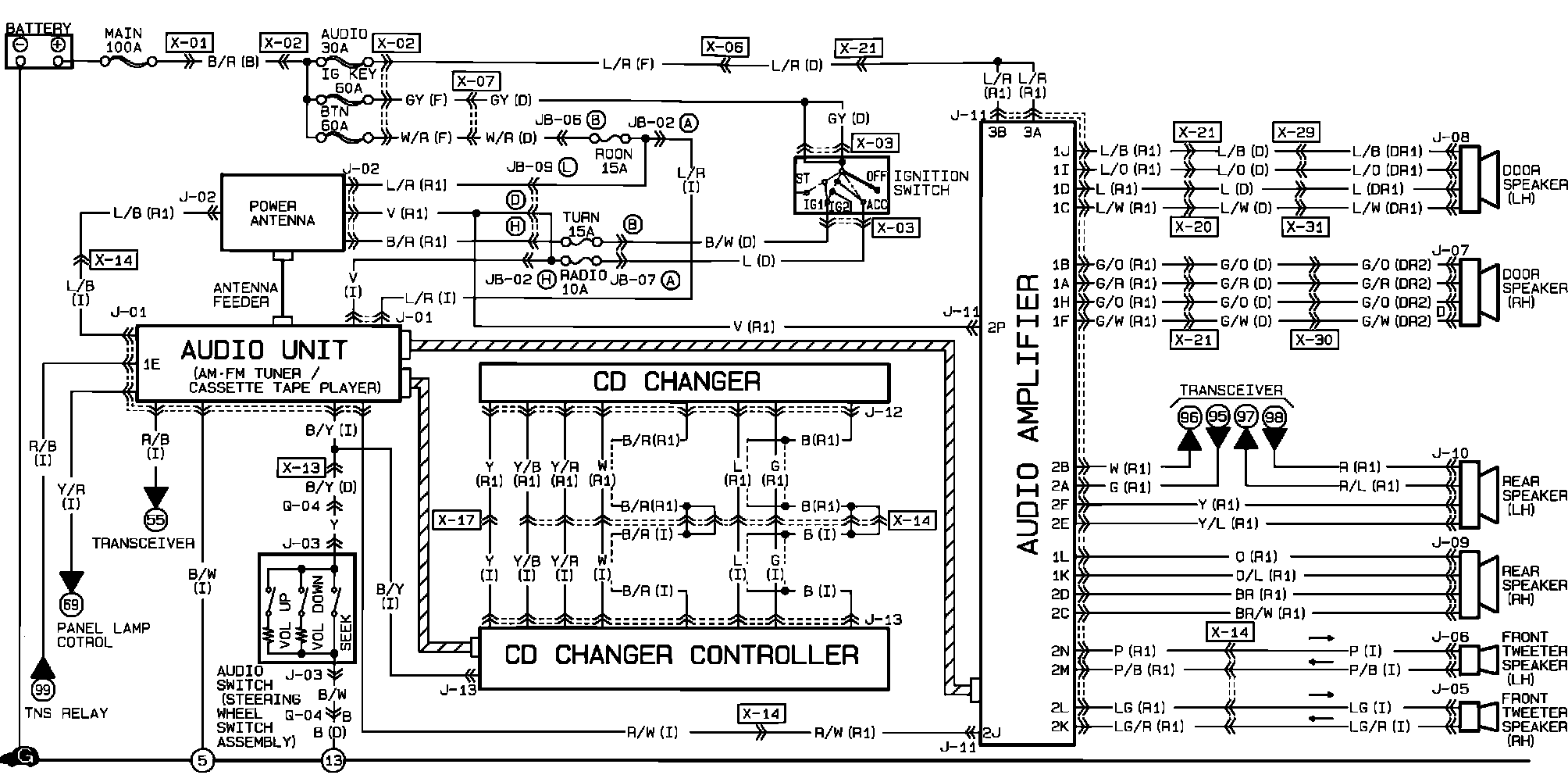

Radio. With CD Changer.:
