Power Window - Regulator Noise

Bulletin No.
048/92

Issued
9/22/92

Revised



Category
S



Applicable Models
1992 929



Subject
POWER WINDOW REGULATOR NOISE



AFFECTED VINS

-JM1HD461 * N0114905 December 8, 1991

DESCRIPTION

The following conditions may occur on some 1992 929 vehicles.

1. An impact noise is heard inside the door panel when the front door glass is being closed after being fully opened. This is due to slack in the wire reel spring.

2. A chattering noise is heard inside the door panel when the front door glass is being opened or closed. This is due to loose motor installation bolts.

Effective December 9, 1991, the following production changes have taken place.

1. The length of the wire reel spring has been changed to prevent wire slack.

2. The insert nut material has been changed to prevent the motor installation bolts from coming loose.

Vehicles built before December 9, 1991 that experience these symptoms should be repaired according to this bulletin.



INSPECTION & REPAIR PROCEDURE

NOTE:
It is recommended that these procedures are performed on both front doors.

Symptom 1

The repair procedure for symptom 1 consists of installing a cable spring on the power window motor/regulator.

1. Roll down the front door glass halfway.

2. Remove the door trim and inside screen as described in the Workshop Manual, Section S.

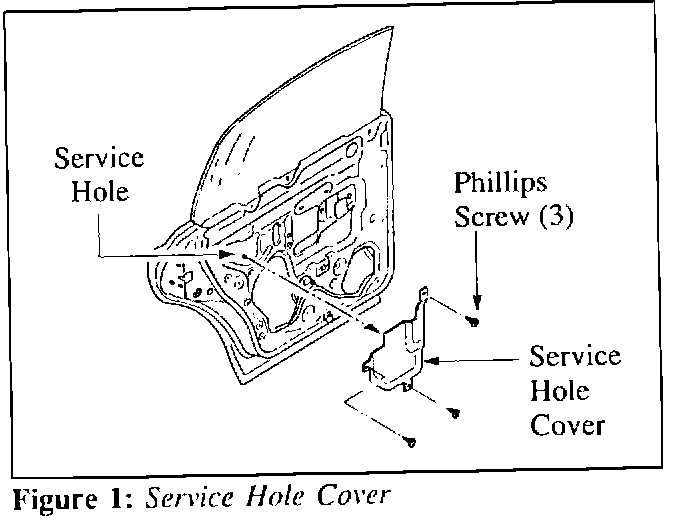

3. Remove the service hole cover (figure 1). The cover is attached to the front door panel by three (3) Phillips screws.



4. Install the cable sprint, according to the following procedure:





a. Hook the cable Spring to the wire tube of the power window motor/regulator (figure 2).

b. Hook the other edge (resin protected side) on the long hole of the door panel (figure 2).

5. Install the service hole cover.

6. Proceed to Symptom 2 Inspection & Repair Procedure.

Symptom 2

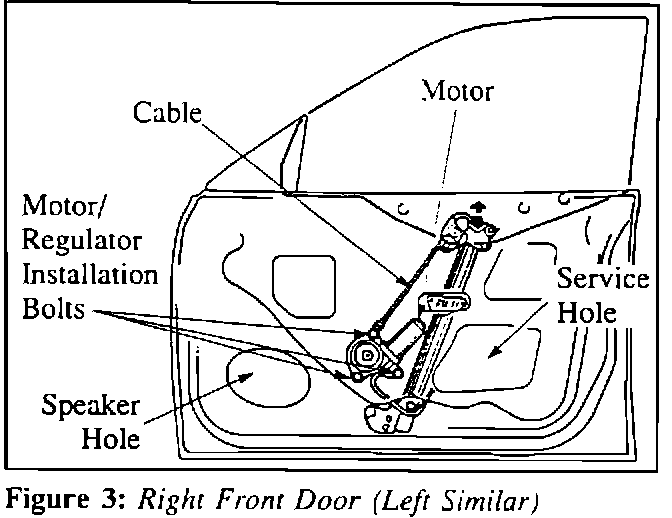

The repair procedure for symptom 2 involves tightening of the three (3) power window motor/ regulator bolts (figure 3).

1. Remove the front speaker as described in Section J of the Body Electrical Troubleshooting Manual.

2. Remove the three (3) inner power window motor/regulator bolts (7 mm) one at a time. Coat each bolt with low strength loctite. Reinstall bolt.

NOTE:





There are six (6) power window motor/ regulator bolts - three (3) inner and three (3) outer. This procedure applies only to the bolts. These bolts are between the motor/ regulator and outer door panel and they can be accessed through the speaker hole and service hole (figure 3).

3. Reinstall the front speaker.



4. Reinstall inside screen and door trim as described in Section S of the Workshop Manual.

NOTE:
Be sure to wipe off any grease or dirt that may have accumulated on the door trim.

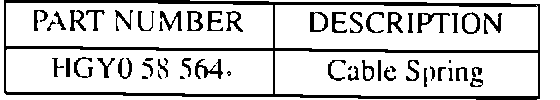

PARTS INFORMATION



WARRANTY INFORMATION
(Applies to vehicles covered under warranty.)

Warranty Type Code:
A

Customer Comment Code:
82

Damage Code:
98

Part No. of Main Cause:
HGY0 58 564

Operation No.:
XX0473R2

Labor Hour:
1.0 Hr. (per door)
