MX-5 Miata L4-1597cc 1.6L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Courtesy Lamp
Courtesy Lamp

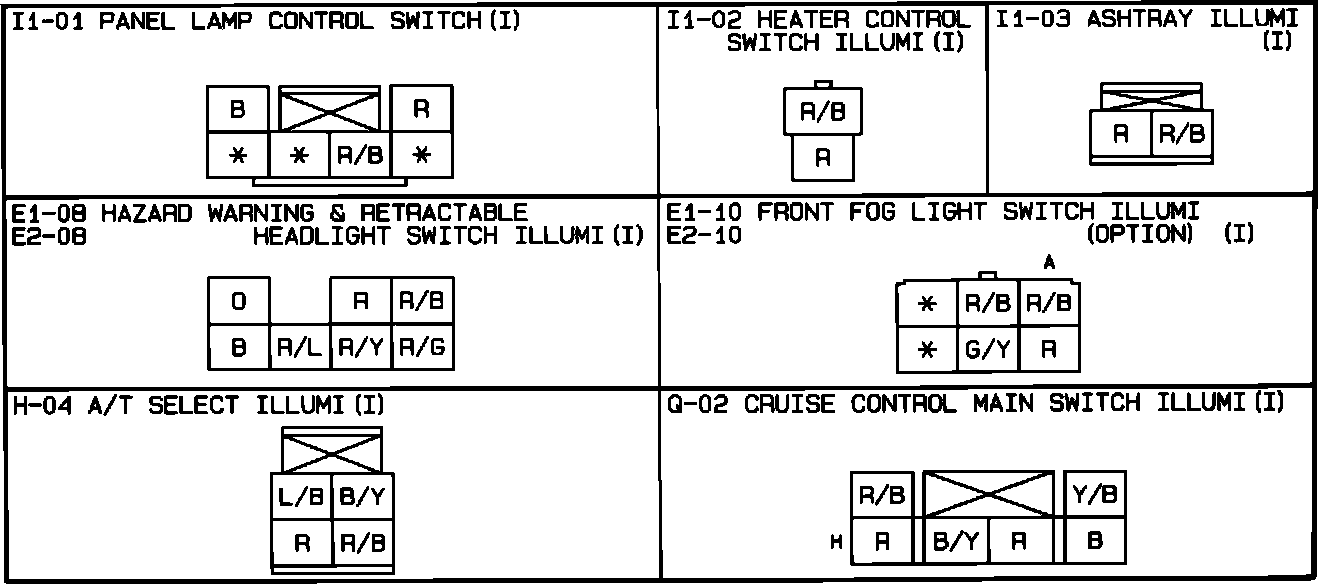

Panel Lamp Control System. Connector Identification:

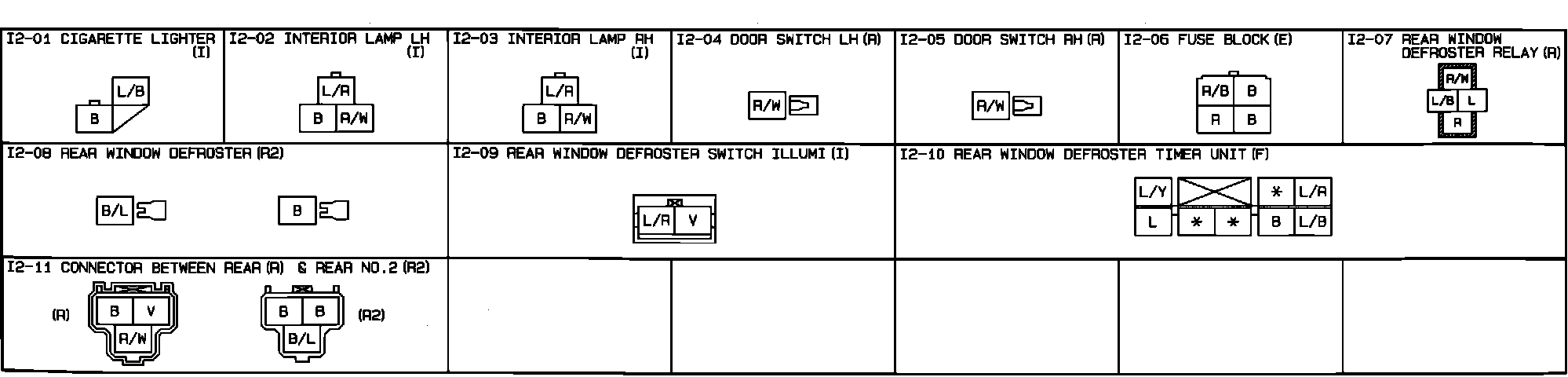

Interior Lamps. Cigar Lighter And Rear Window Defogger. Connector Identification:
