Courtesy Lamp: Locations

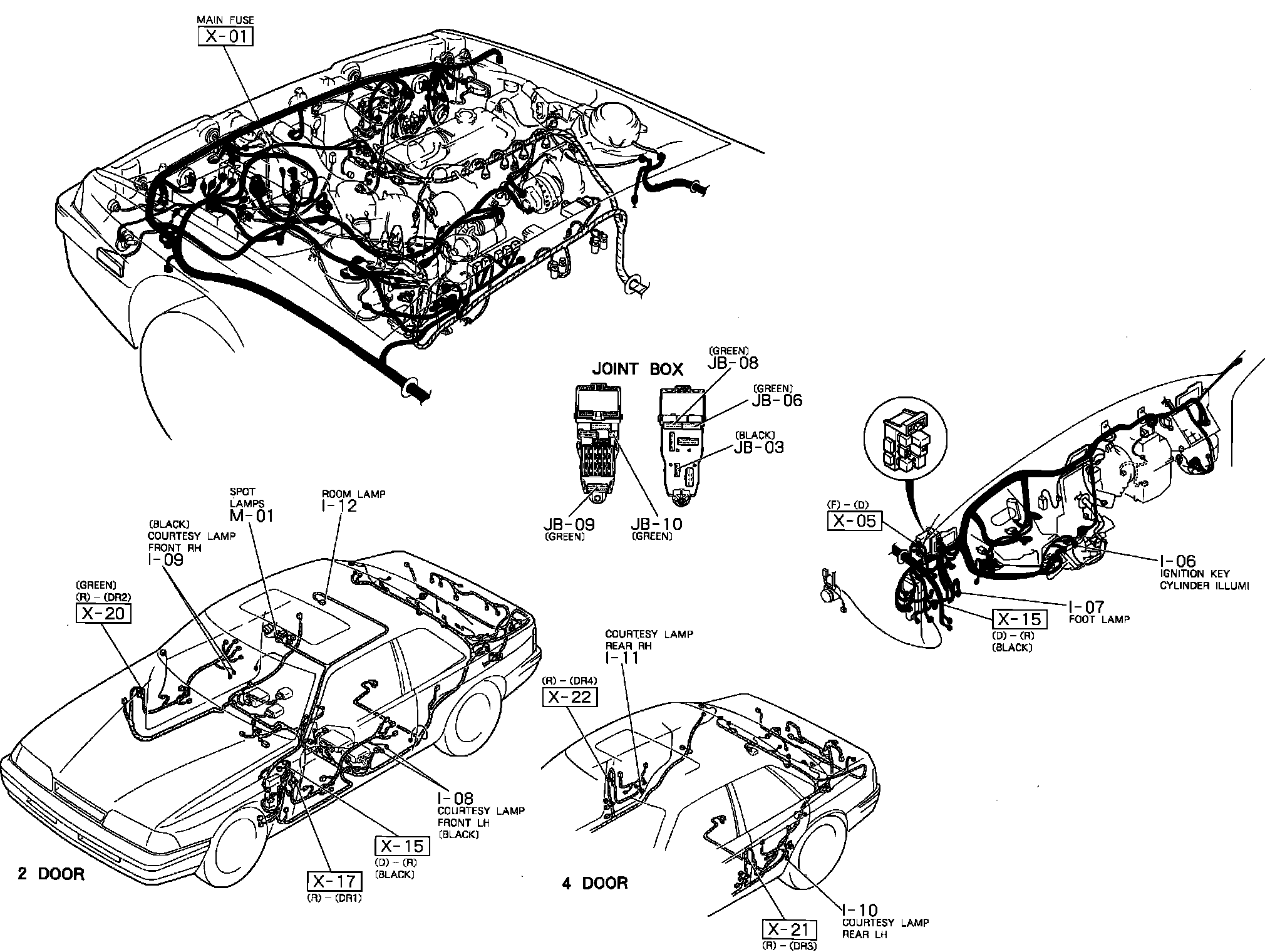

Courtesy, Room, Foot, Spot And Ignition Key Cylinder Illumination Lamps. Harness And Connector Locations:
