Transmission Cooler: Service and Repair

Removal / Inspection / Installation
1. Remove in the order shown in the figure.
2. Inspect all parts and repair or replace as necessary.
3. Install in the reverse order of removal, referring to Installation Note.

Installation note

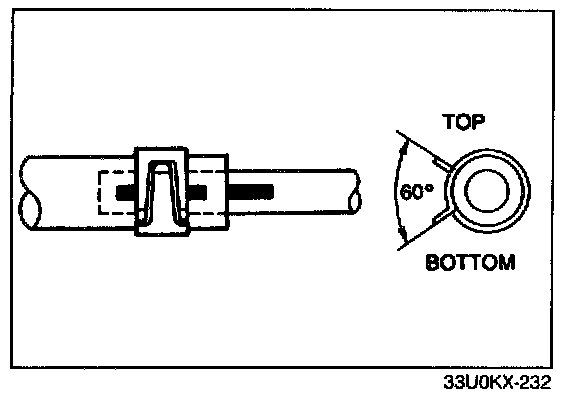

Oil hose (radiator side)
1. Align the marks, and slide the oil cooler hose onto the oil cooler pipe until it is fully seated against the ridge.
2. Install the hose clamp onto the hose at the center of the mark and at the angle shown.
3. Verify that the hose clamp does not interfere with any other parts.

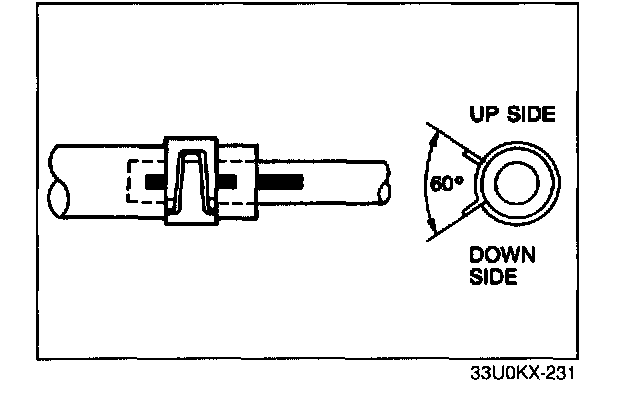

Oil cooler hose (oil pump side)
1. Align the marks, and slide the oil cooler hose onto the oil cooler pipe until it is fully seated against the ridge.
2. Install the hose clamp onto the hose at the center of the mark and at the angle shown.
3. Verify that the hose clamp does not interfere with any other parts.
