Transmission Cooler: Service and Repair

Removal / Inspection / Installation
1. Disconnect the negative battery cable.

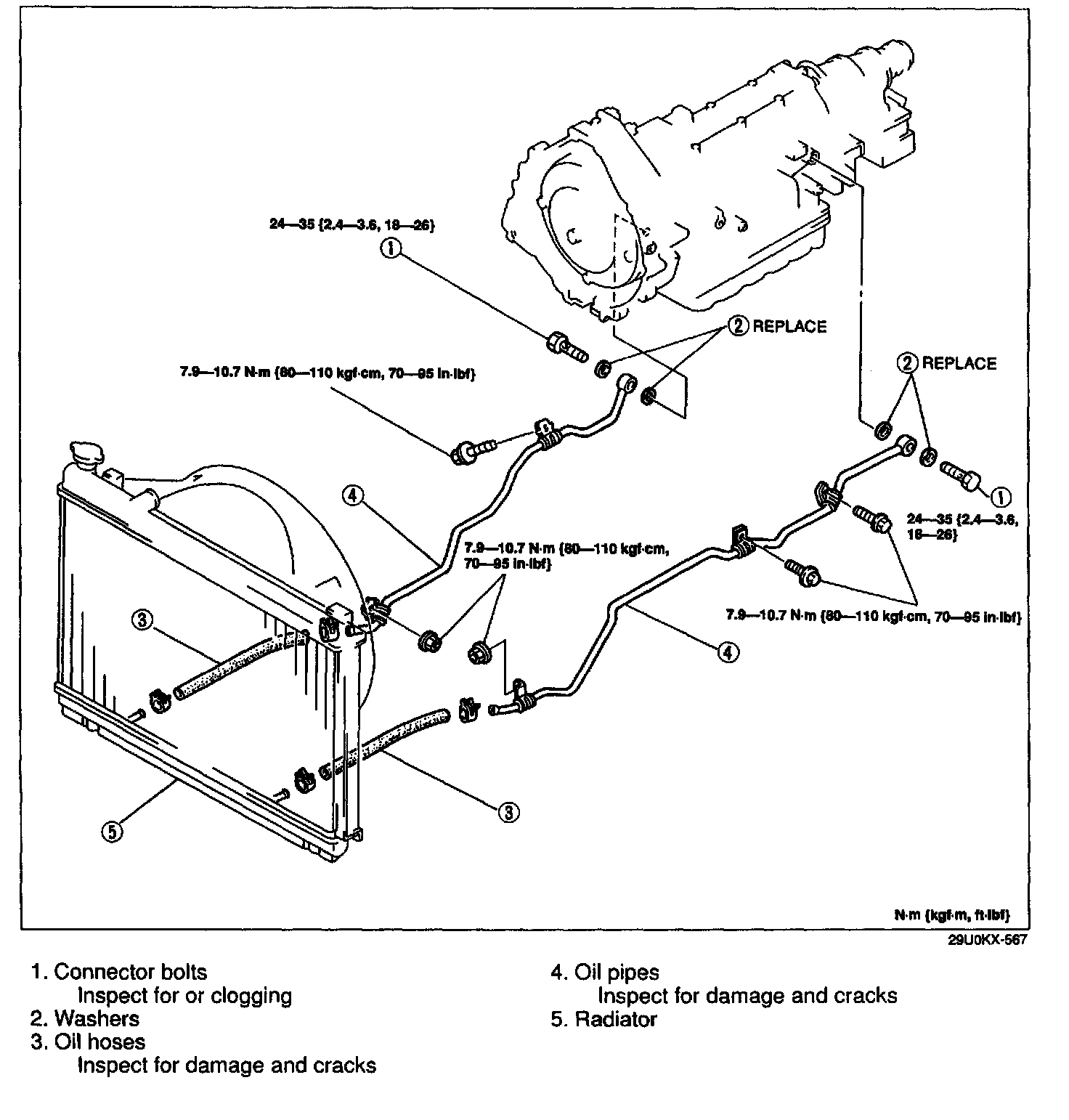

2. Remove in the order shown in the figure.
3. Inspect all parts and repair or replace as necessary.
4. Install in the reverse order of removal, referring to Installation Note.
5. Add ATF to the specified level.
6. Connect the negative battery cable.
7. Inspect the oil leakage from the oil pipes and oil hoses.
8. Inspect the ATF level and condition.

Installation note Oil hoses






CAUTION:
- If reusing the hose clamp, position the hose clamp in the original location on the hose.

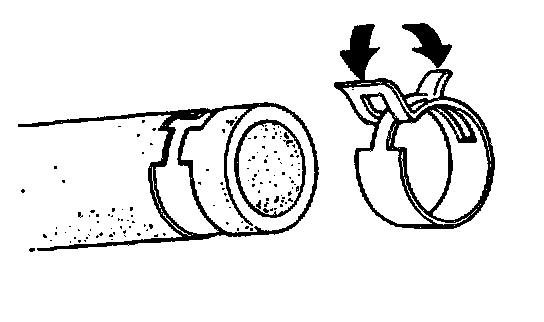

- Squeeze the clamp lightly with large pliers to ensure a good tie.

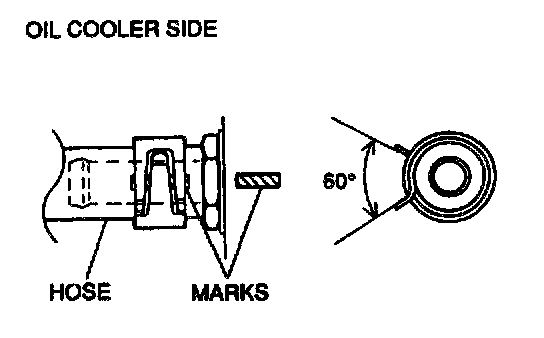

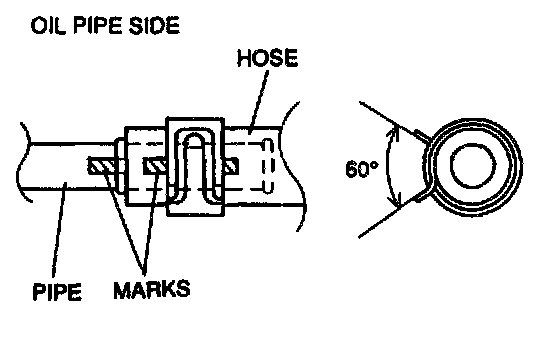

1. Align tile marks, and slide the oil cooler hose onto the oil cooler pipe until it is fully seated as shown.
2. Install the hose clamp onto the hose at the center of the mark and at the angle shown.
3. Verify that the hose clamp does not interfere with any other parts.
