Intake Manifold: Service and Repair

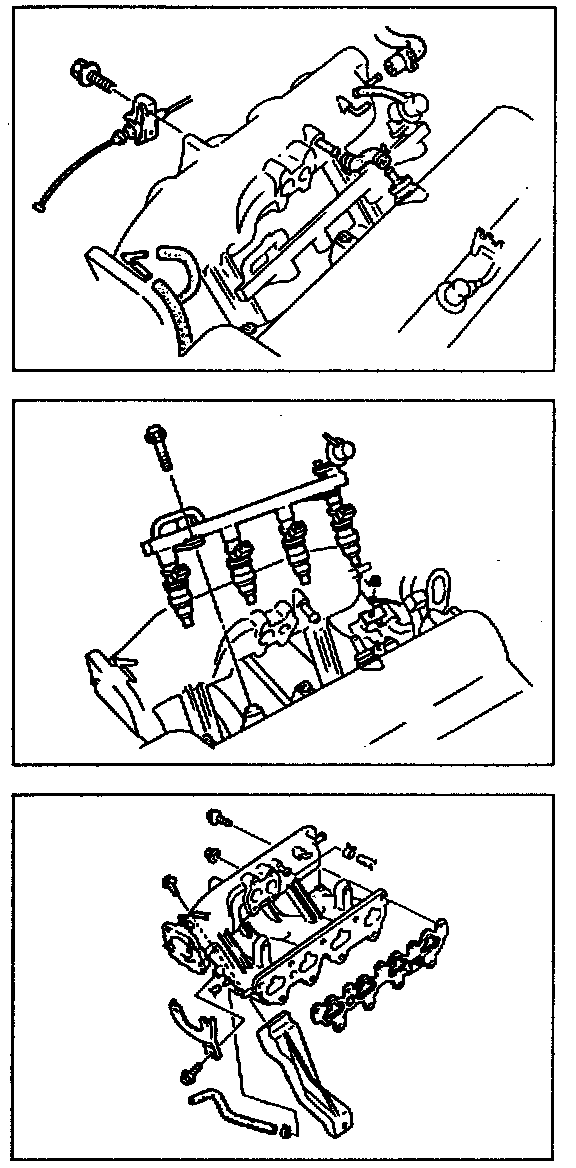

Intake Manifold R&R:

WARNING: Release fuel pressure before performing this procedure.

1. Remove throttle body.
2. Remove air valve.
3. Disconnect vacuum hoses.
4. Remove accelerator cable.
5. Disconnect fuel hoses.
6. Unplug injector electrical connectors.
7. Remove delivery pipe and injectors.
8. Remove injector harness.
9. Remove manifold bracket.
10. Remove manifold.
11. Install in reverse order. Use a new gaskets.
12. Torque manifold and delivery pipe to 14 - 19 ft lb (19 - 25 Nm).
13. Torque injector harness and bracket to 69 - 95 in lb (7.8 - 11.0 Nm).
