Fuel Pressure Release: Service and Repair

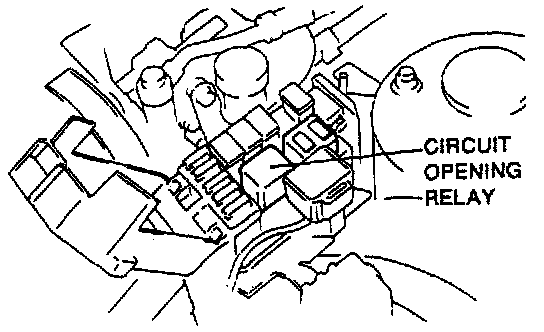

Fig. 1, Circuit Opening Relay Location:

1. Start engine, then remove circuit opening relay, Fig. 1.
2. After engine stalls, turn ignition switch Off.
3. Install circuit opening relay.
