Airbag Module Deployment

AIR BAG MODULE DISPOSAL PROCEDURE
Before scrapping a vehicle with an undeployed air bag module, deploy the air bag. Never dispose of a live air bag module. If the deployment tool SST is not available, consult the nearest Mazda representative for assistance.

Air Bag Deployment

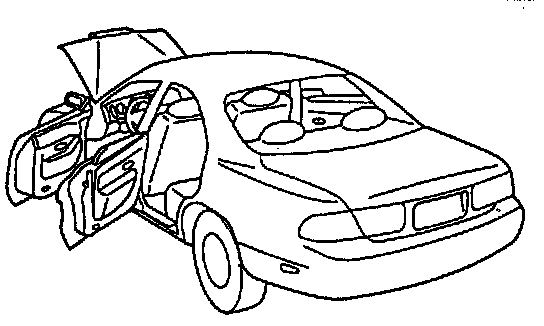

1. Move the vehicle to an open space, away from strong winds, and open all of the vehicle's doors.
2. Deactivate the audio antitheft system, if installed.
3. Disconnect the negative battery cable.

(Driver-side)





4. Make sure the air bag module is firmly mounted to the steering wheel.

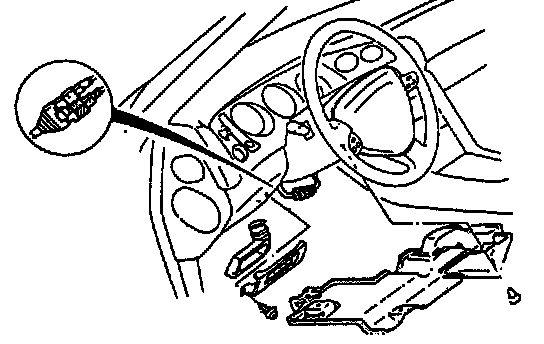

5. Remove the driver-side undercover, lower panel and lap duct.
6. Disconnect the orange and blue clock spring connectors.





7. Inspect the SST.

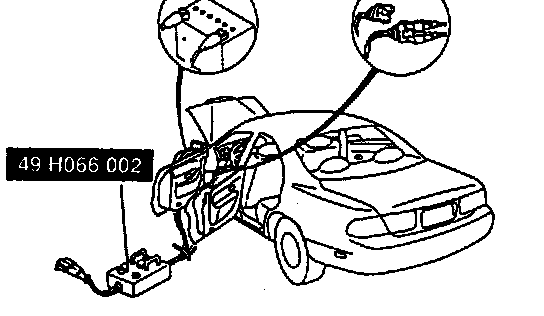

8. Connect the SST to the clock spring connector as shown in the figure.

(Passenger-side)





1. Remove the front and rear console assemblies and the passenger-side undercover, lower panel, and side panel.

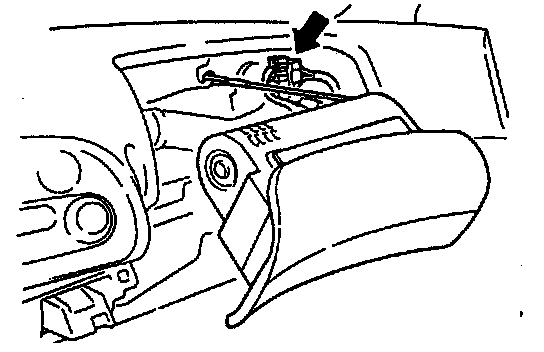

2. Slide the air bag module forward and disconnect the air bag module connector.
3. Pull the connector down through the underside opening and reinstall the air bag module.





4. Inspect the SST.

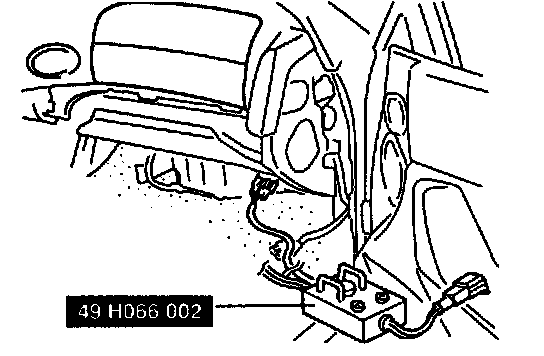

5. Connect the SST to the air bag module as shown in the figure.





6. Connect the red clip of the SST to the positive battery terminal and the black clip to the negative terminal.

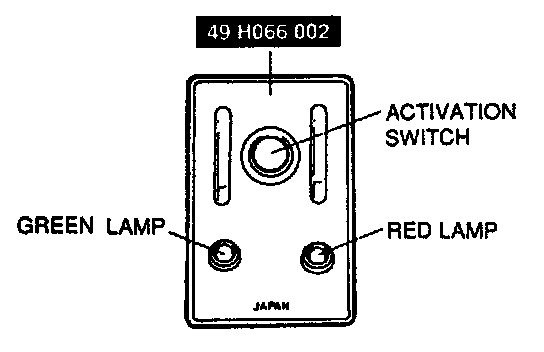

7. Verify that the red light on the SST is illuminated.





8. Make sure all persons are standing at least 6 m (20 ft) from the vehicle.
9. Press the activation switch on the SST to deploy the air bag.
