Transmission Cooler: Service and Repair

OIL COOLER





Removal / Inspection / Installation
1. Disconnect the negative battery cable.

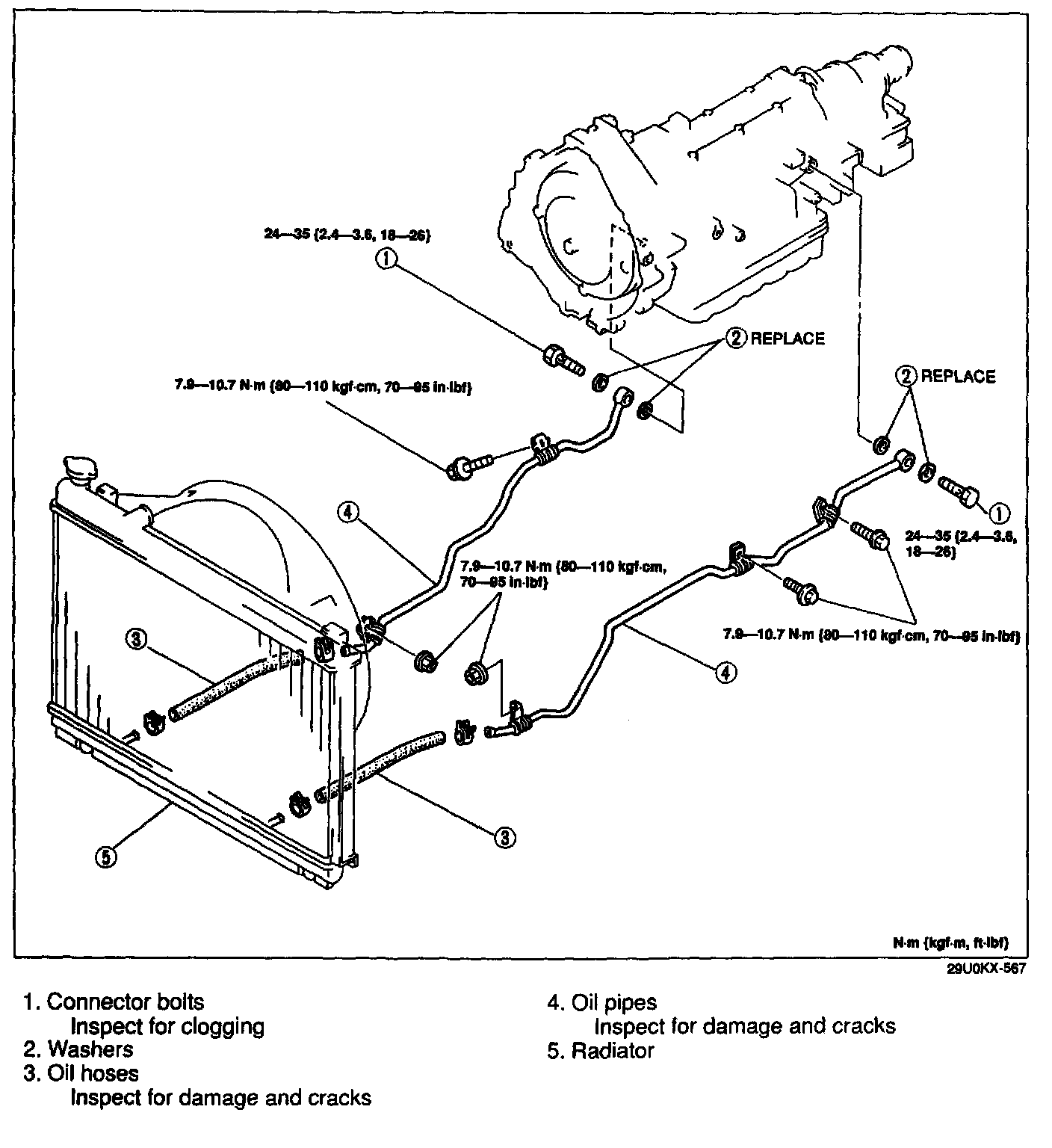

2. Remove in the order shown in the figure.
3. Inspect all parts and repair or replace as necessary.
4. Install in the reverse order of removal, referring to Installation Note.
5. Add ATF to the specified level.
6. Connect the negative battery cable.
7. Inspect the oil leakage from the oil pipes and oil hoses.
8. Inspect the ATF level and condition.

Installation note
Oil hoses

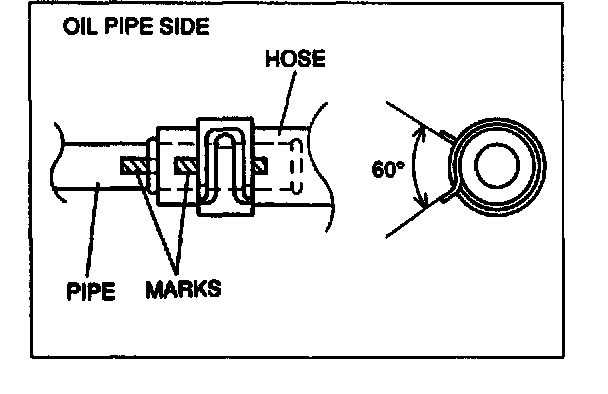

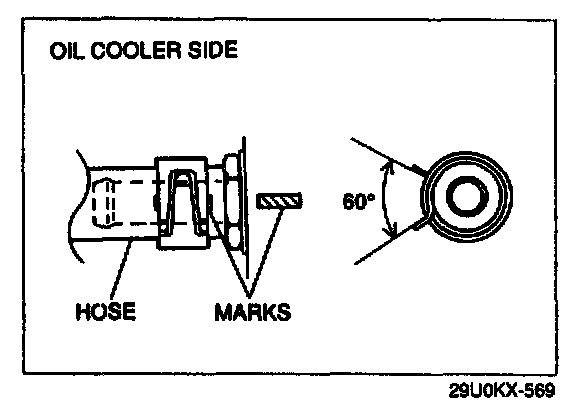

1. Install the oil cooler hose to the oil cooler pipe with the marks aligned as shown, and install the hose clamp.





2. Install the hose clamp onto the hose at the center of the mark and at the angle shown.
3. Verify that the hose clamp does not interfere with any other parts.
