Component Locations

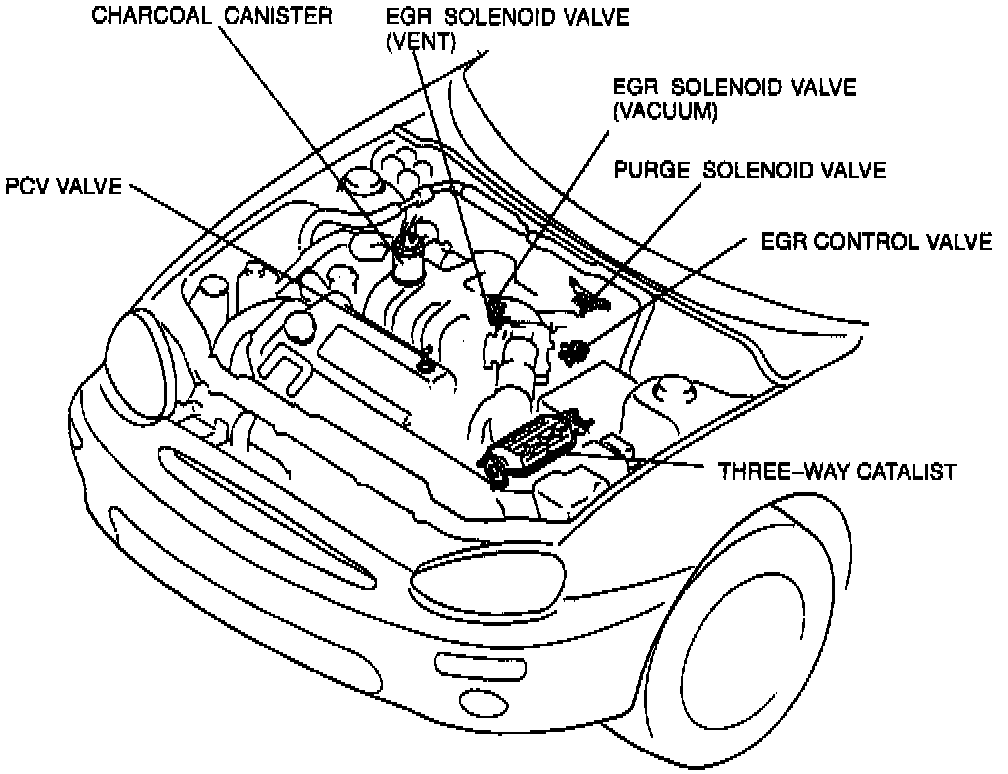

Outline Of Emission Control System:

The two EGR solenoid valves (vent and vacuum) are located near the firewall side of the intake manifold mounted as a pair. Refer to image for further reference.
