Mazda
>>
1995
>>
626 L4-1991cc 2.0L DOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Manual Transaxle
Manual Transaxle

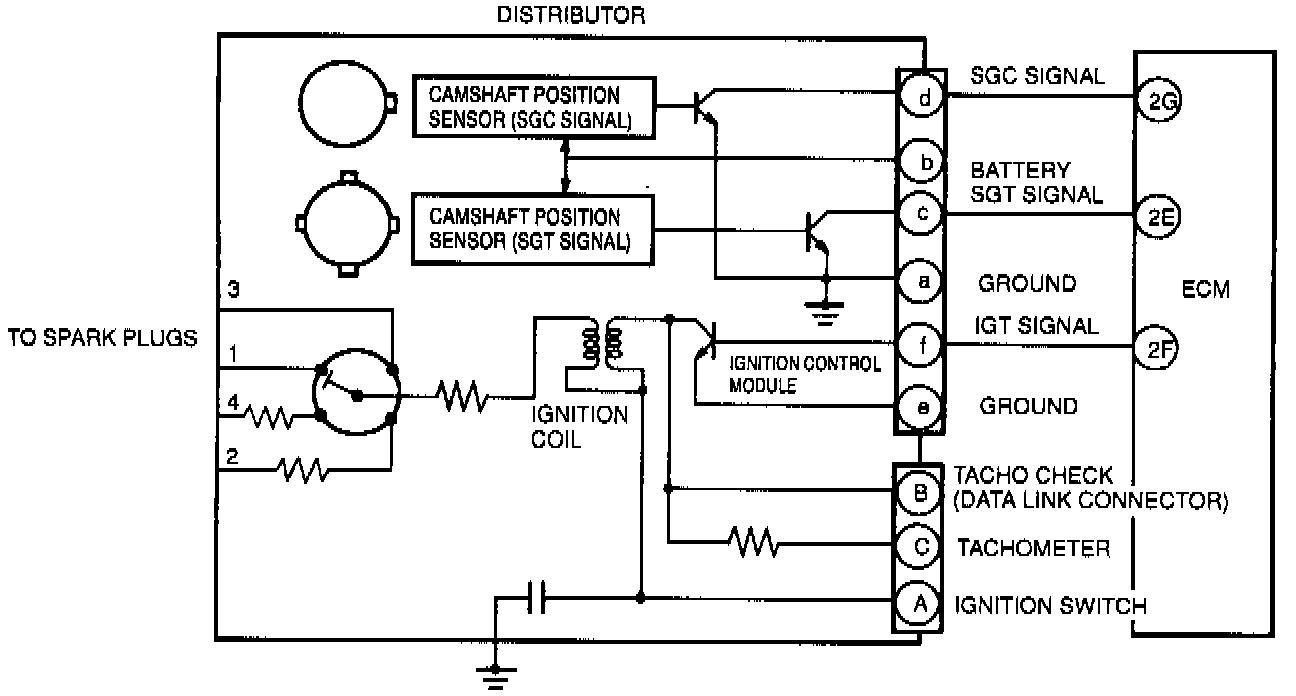

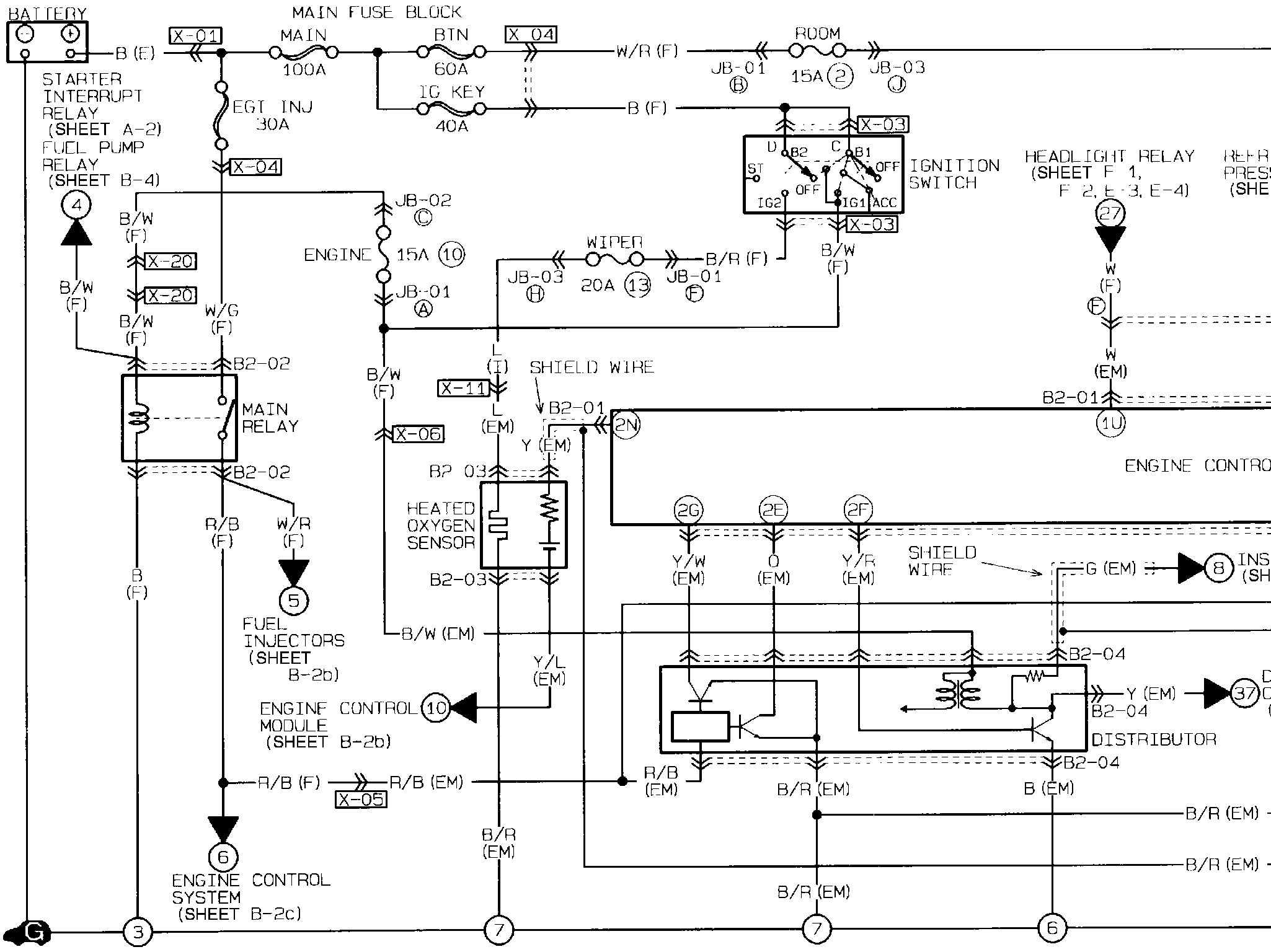

A�FMTX Engine Control System, Ignition System B-2A:
