Operation CHARM: Car repair manuals for everyone.
Home >> Mazda >> 1995 >> 929 V6-3.0L DOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Automatic Transmission/Transaxle >> Shift Interlock, A/T

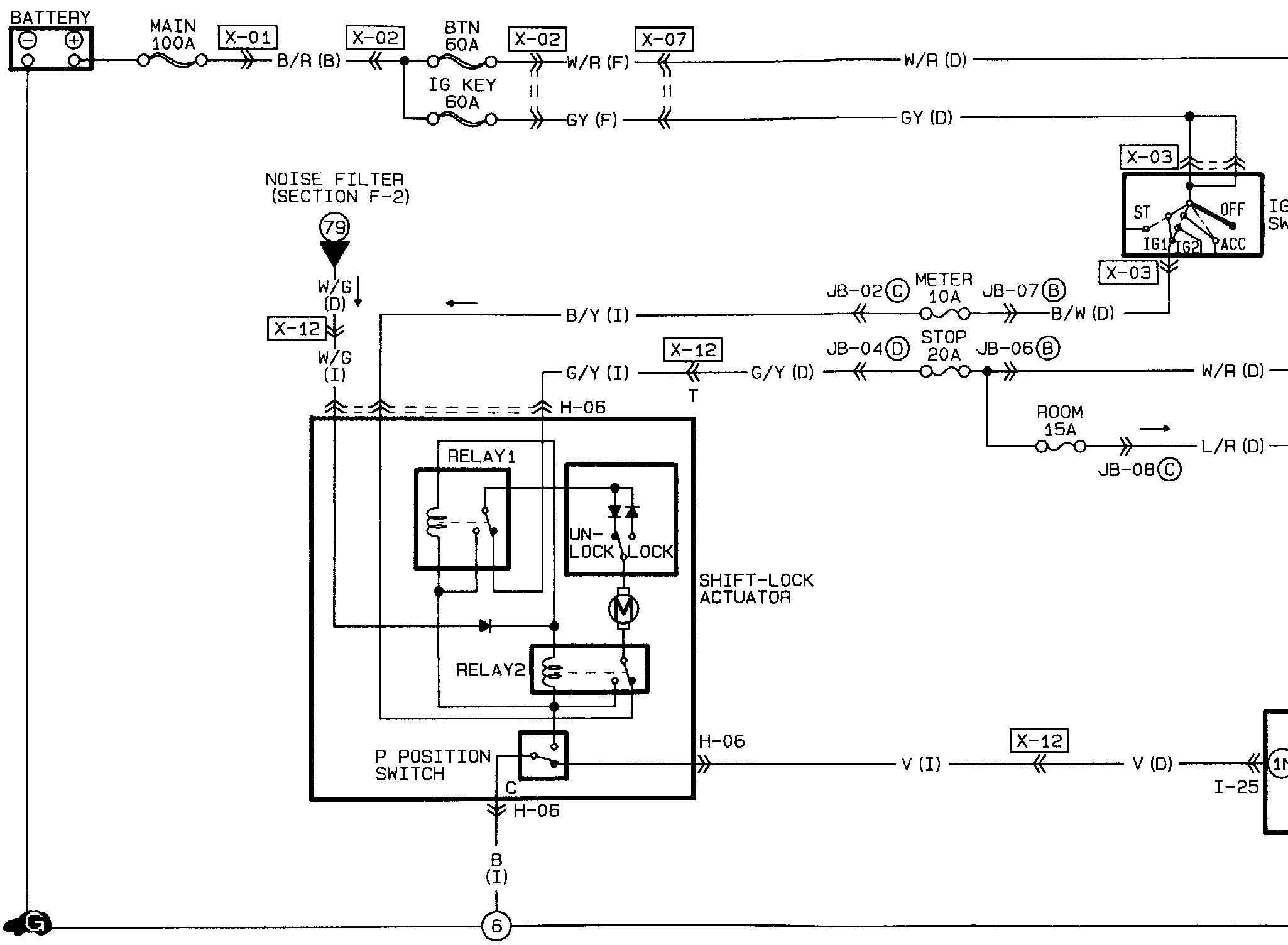

Shift Interlock, A/T

�<HShift-Lock System, Key Interlock System:
