Throttle Body: Service and Repair

NOTE: Use the image as a reference when servicing the throttle body.

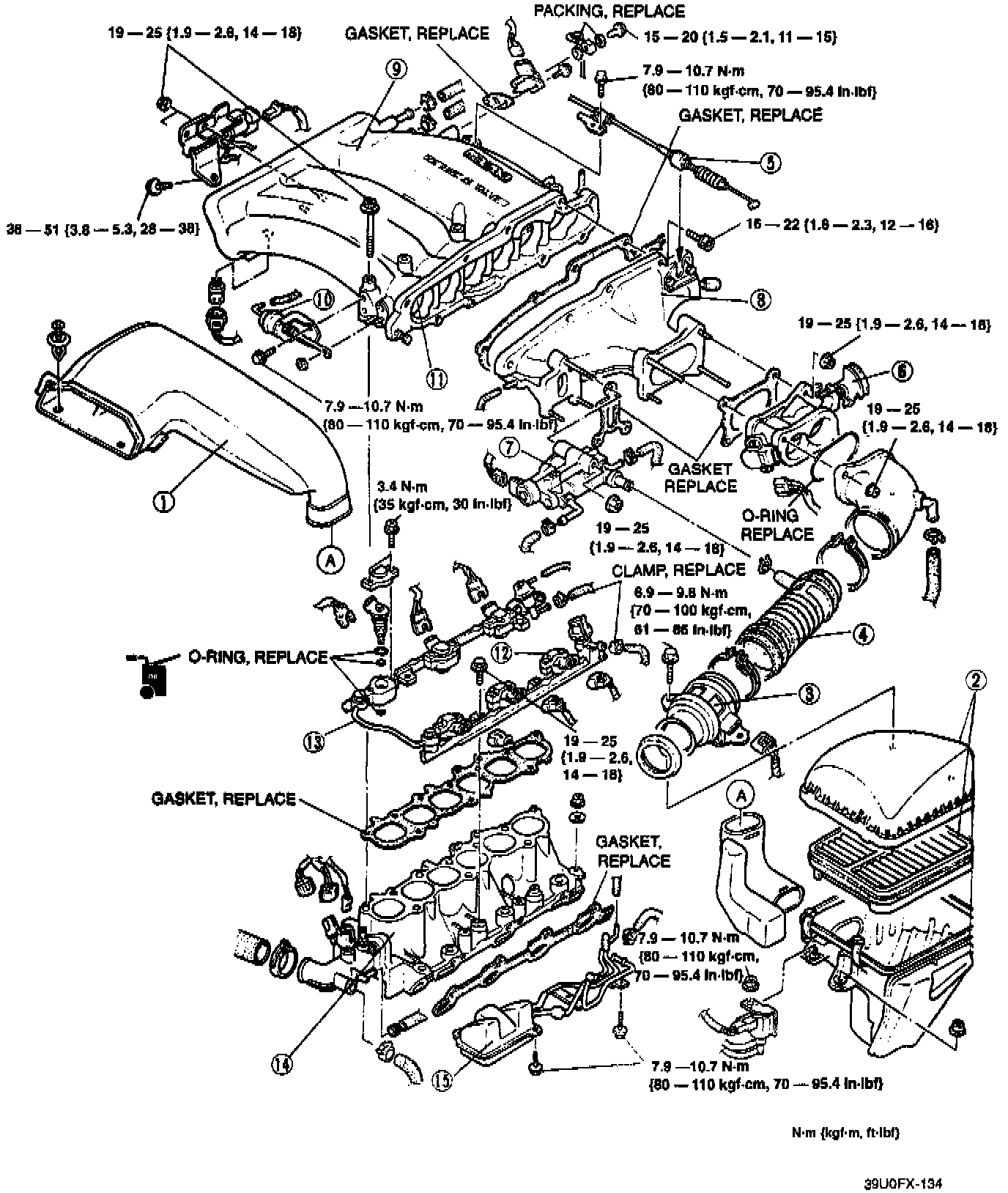

EXPLODED DIAGRAM OF INTAKE AIR SYSTEM
1. Air Duct
2. Air Cleaner
3. Volume Airflow Sensor
4. Intake Air Hose
5. Accelerator Cable
6. Throttle Body
7. Bypass Air Control (BAC)
8. Air Intake Pipe
9. Dynamic Chamber
10. Variable Inertia Charging System (VICS) Shutter Valve Actuator
11. (VICS) Shutter Valve
12. Fuel Injector
13. Fuel Distributor
14. Intake Manifold
15. Vacuum Chamber
