Lateral Stabilizer Rod: Service and Repair

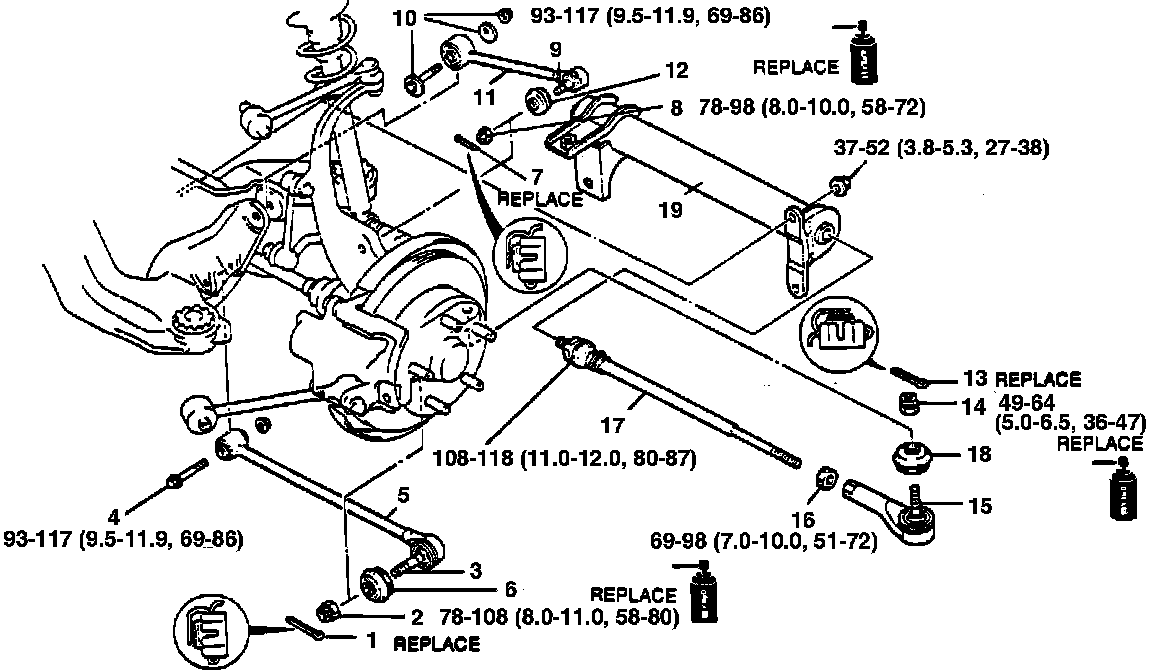

Fig. 11 Removal & Installation Of Lateral Links.:
When removing or installing a lateral link assembly, refer to
Fig. 11.
Reverse numerical removal sequence to install.
