Replacement

Replacement
1. Remove the selector rod from the manual shaft lever.
2. Move the manual shaft to N position.

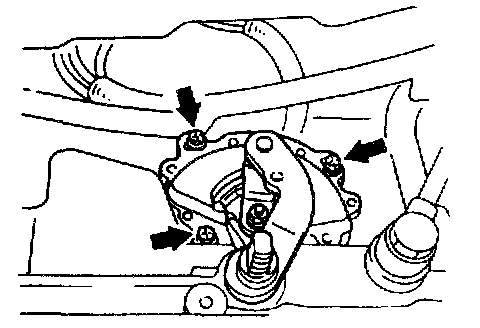

3. Loosen the transmission range switch mounting bolts.

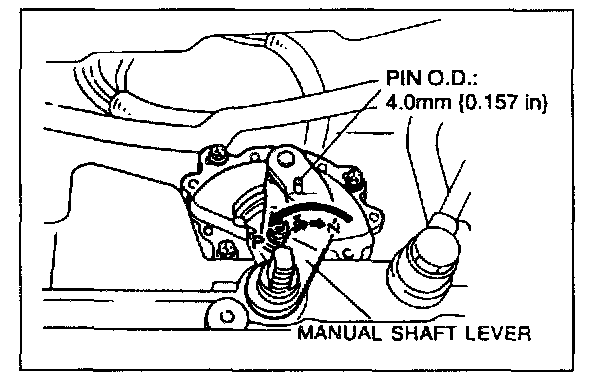

4. Align the holes of the transmission range switch and the manual shaft lever by inserting an approx. 4.0 mm {0.157 in} outer diameter pin.





5. Tighten the transmission range switch mounting bolts and remove the pin.

Tightening torque: 2.5 - 3.9 N.m {25 - 40 kgf.cm, 22 - 34 in.lbf}

6. Recheck the continuity of the transmission range switch.
7. If not correct, replace the transmission range switch.
8. Install the selector rod to the manual shaft lever.
