Home >> Mazda >> 1995 >> MX-3 L4-1598cc 1.6L DOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Charging System >> ATX

ATX

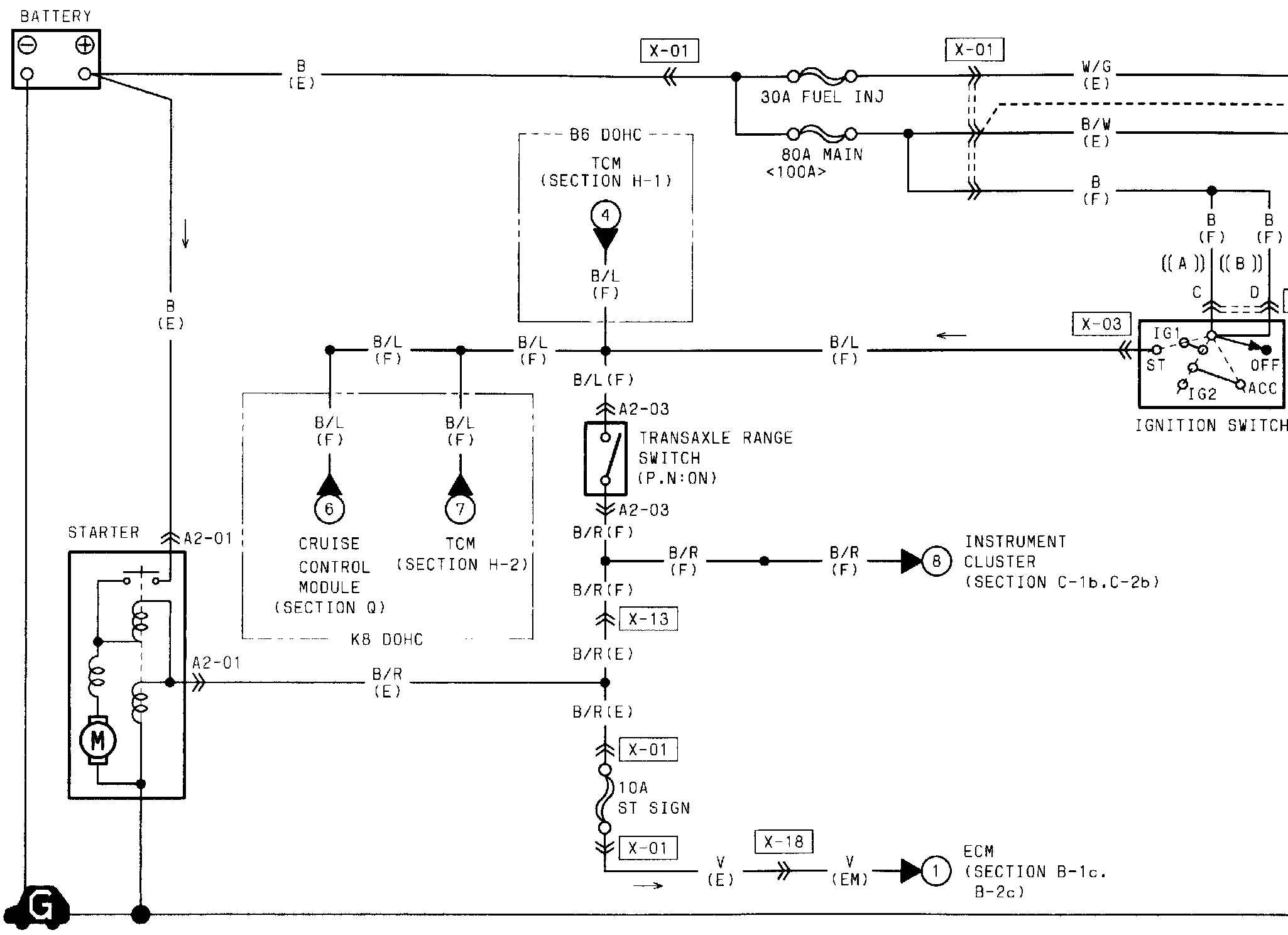

y�]ATX Starting System, Charging System:
