Home >> Mazda >> 1995 >> Millenia V6-2255cc 2.3L DOHC >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Diagrams >> Electrical Diagrams

Electrical Diagrams

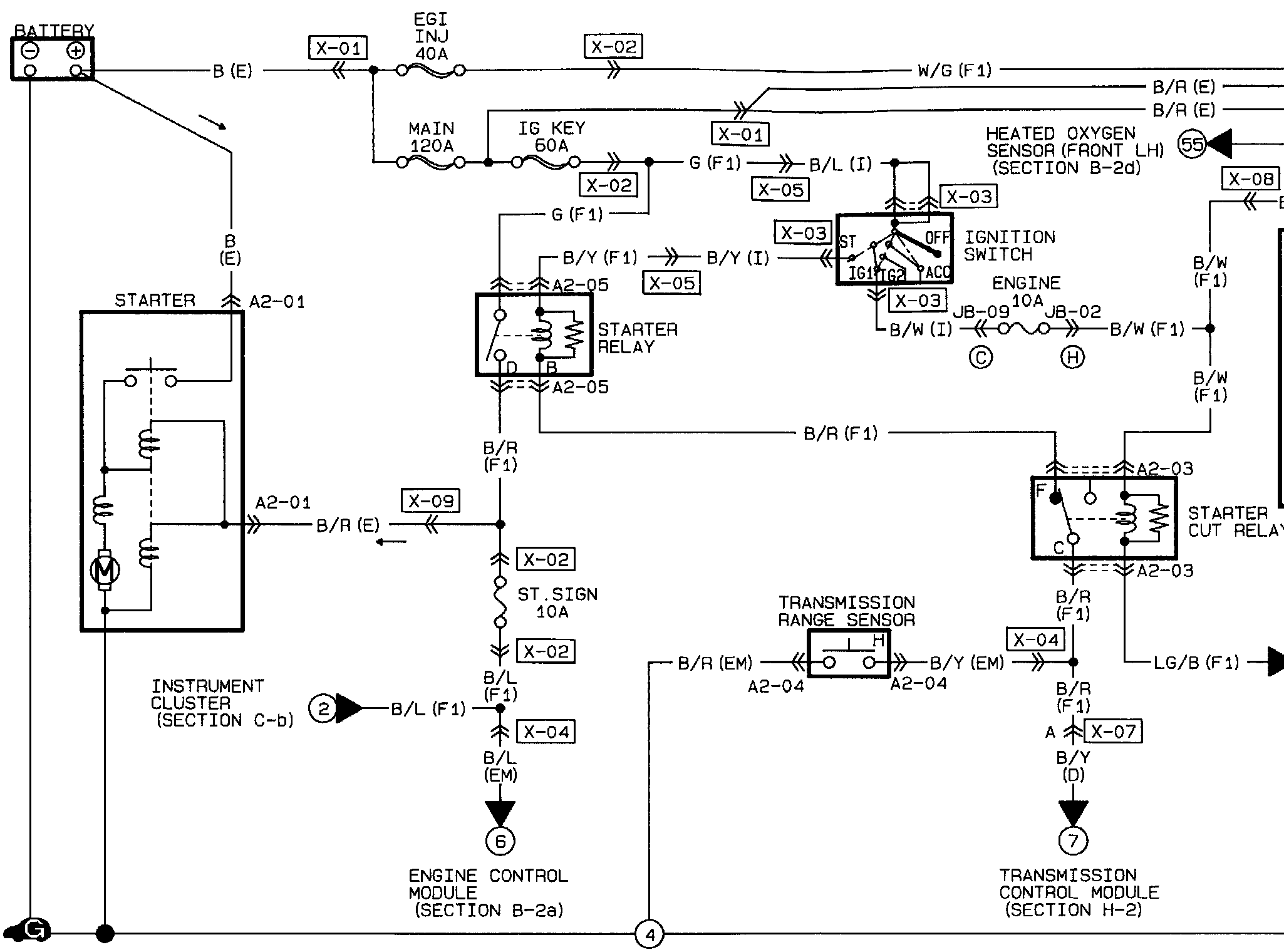

�;]Charging System, Starting System:
