Blower Motor: Service and Repair

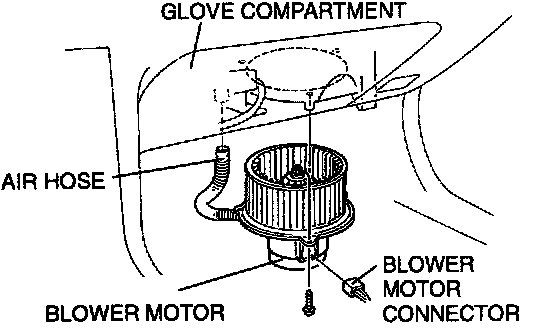

Blower Motor Removal / Installation





1. Remove the undercover.
2. Disconnect the blower motor connector.
3. Remove the air hose.
4. Remove the three hex tapping screws and blower motor.
5. Install in the reverse order of removal.
