Home >> Mazda >> 1995 >> Protege L4-1.5L DOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Automatic Transmission/Transaxle >> Shift Interlock, A/T

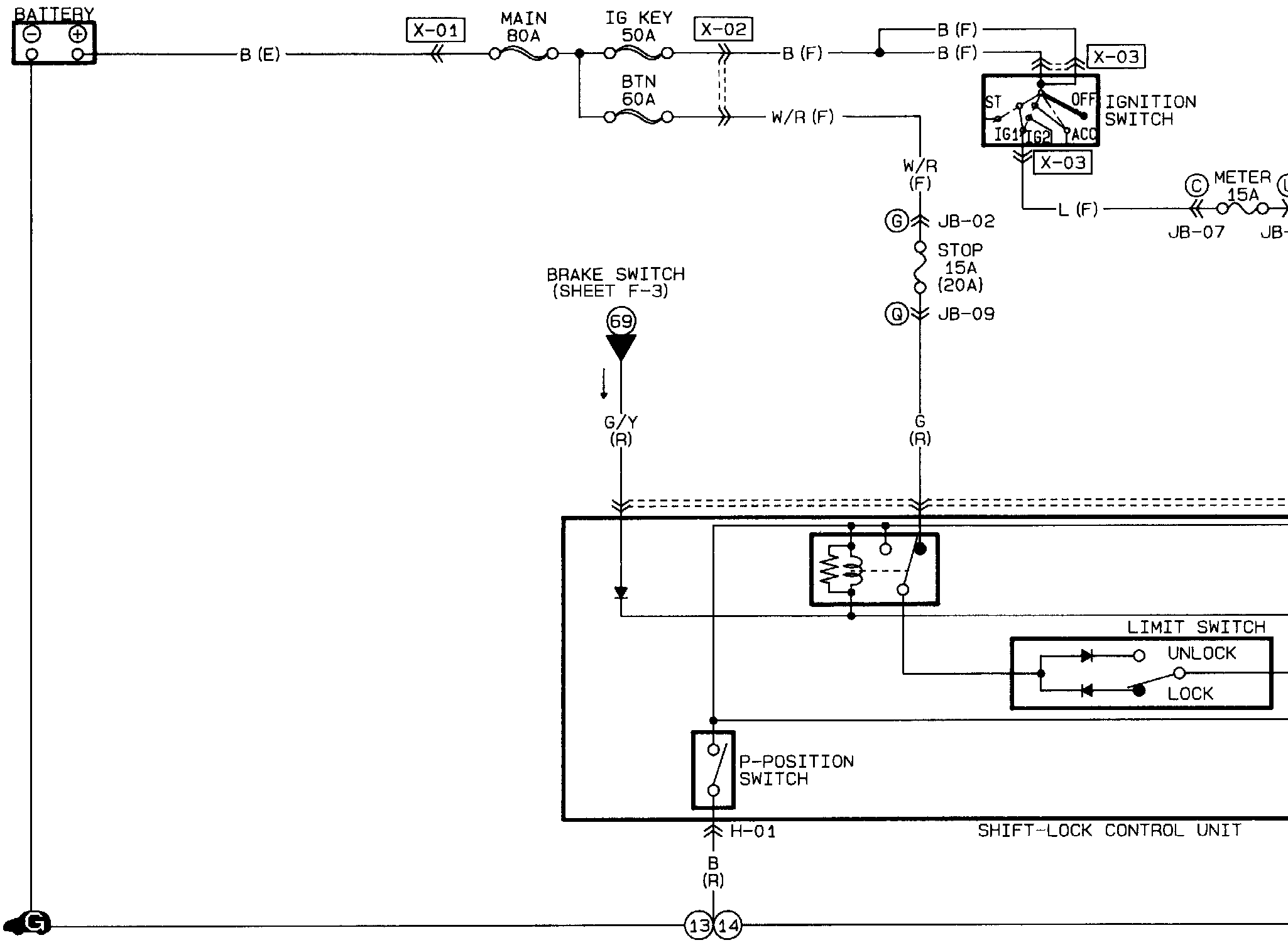

Shift Interlock, A/T

ܔ:HShift-Lock System:
