Audio - No Sound From When Cold

* Bulletin No. 011/95
Issued 7/30/95
Revised 9/12/95

Category
T

Applicable Model/s
1995 Protege (ES & LX)

Subject
NO SOUND FROM AUDIO

The "Applicable Models" portion and the NOTE listed below are revised. Replace the original bulletin with this revised copy.

APPLICABLE MODELS/VINS

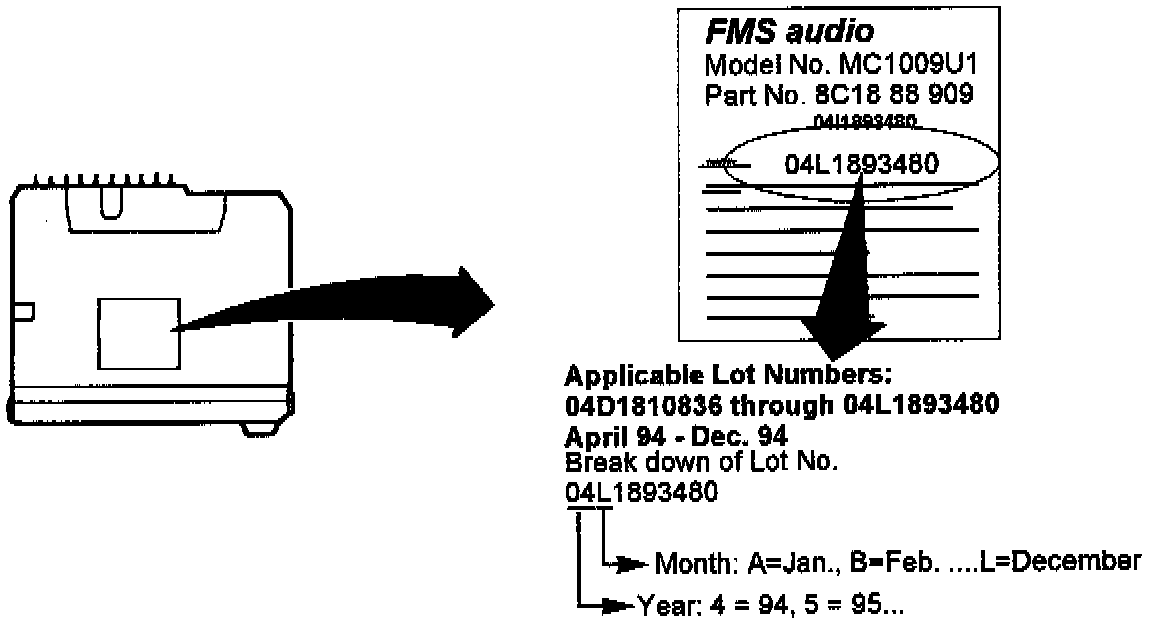

Identify by "lot" number on audio unit (see Applicable).*

DESCRIPTION

When turning on the audio system during cold temperatures (32 degrees F (0 degrees C) or lower) sound from the speaker(s) can take up to 10 seconds. This condition is created by cold temperatures affecting the power transistor's operating voltage. To prevent the cold temperature from affecting the operating voltage, the circuitry of the audio unit has been changed.
* Customers complaining of this problem should have the audio unit inspected and, if necessary replaced.

NOTE:
There are no part number changes. Refer to the "Lot" number to identify new and old audio components. Modified audio systems are available through the FMS service center at 1-800-523-6605. *

WARRANTY INFORMATION

(Applies To Verified Customer Complaints On Vehicles Covered Under Normal Warranty. Refer To The SRT Microfiche For Current Warranty Term Information).

Warranty Type: A
Symptom Code: B1
Damage Code: AB
Part Number Main Cause: BC1B 79 020
Quantity: 0
Operation Number: T1102XRX
Labor Hours: 0.3 Hrs.
