Home >> Mazda >> 1995 >> Protege L4-1839cc 1.8L DOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Charging System >> MTX

MTX

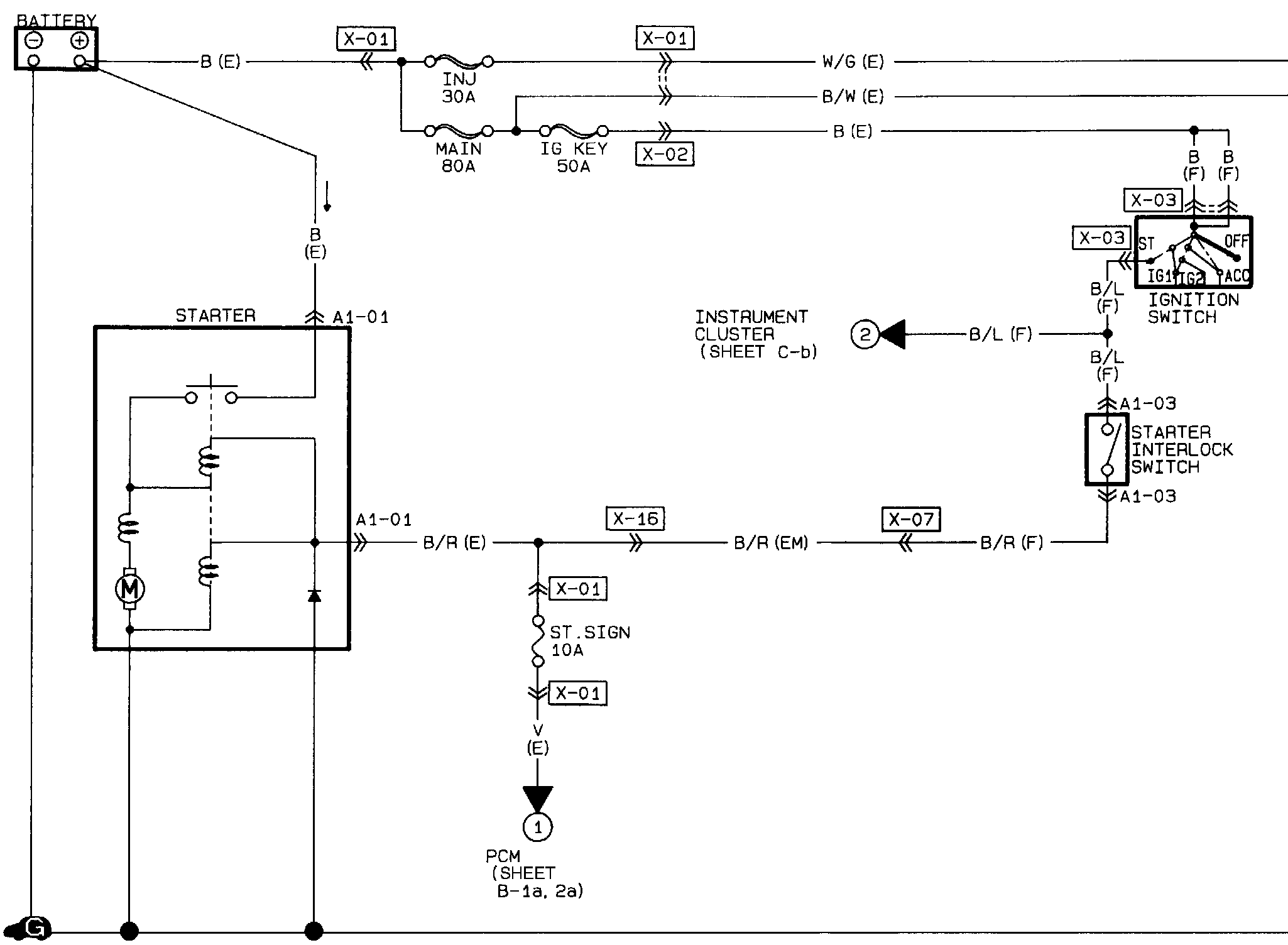

�G ]MTX Starting System, Charging System:
