Fuel Injector: Service and Repair

Warning: Fuel vapor is hazardous. It can very easily ignite, causing serious injury and damage. Always keep sparks and flames away from fuel.
^ Fuel line spills and leaks are dangerous. Fuel can ignite and cause serious injuries or death and damage. Fuel can also irritate skin and eyes. To prevent this, always complete the "Fuel Line Safety Procedures".

1. Disconnect the negative battery cable.

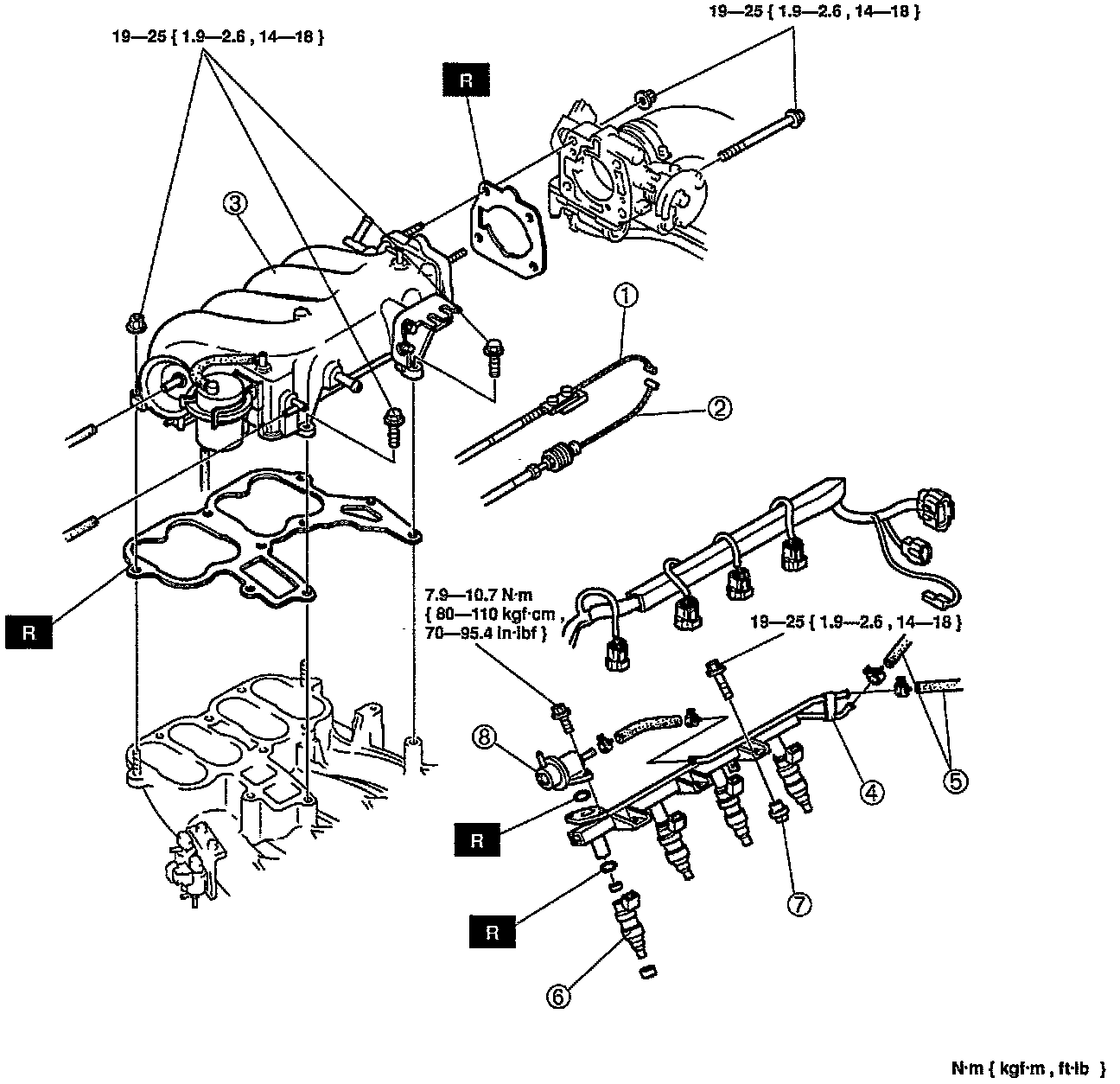

2. Remove in the order shown in the figure.
3. Install in the reverse order of removal, referring to Installation note.
4. Verify that the fuel injectors are properly installed by referring to steps after installation.




1. Throttle cable
2. Accelerator cable
3. Dynamic chamber
4. Fuel distributor
5. Fuel hoses
6. Fuel injector
7. Insulator
8. Pressure regulator


Installation note
Fuel injector, pressure regulator
^ Apply a small amount of clean engine oil to the new 0- rings, and install them.
