Electrical Diagrams

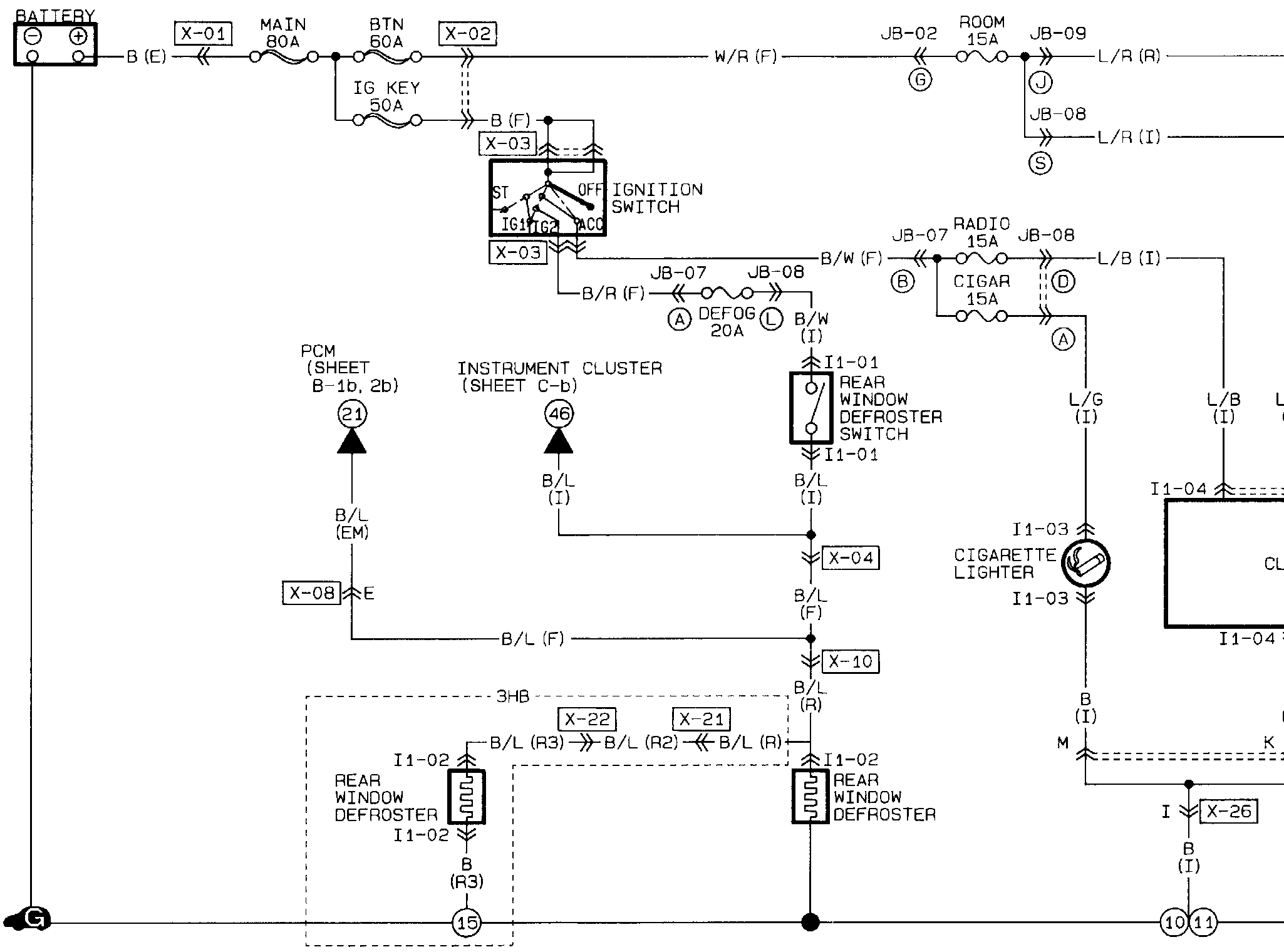

$-�rRear Window Defroster, Cigarette Lighter, Clock, Trunk Compartment Light, Cargo Compartment Light:
