Engine Mount - Oil Pan Bolt Interference

Bulletin No.: 008/97
Issued: 11/18/97
Revised

Category
B

Applicable Model/s
1993-95 RX-7

Subject:
LEFT ENGINE MOUNT INTERFERES WITH OIL PAN BOLT - Remanufactured Installation

APPLICABLE MODELS
1993 - 95 RX-7 with a VIN of JM1FD333*S0400027 and lower.

DESCRIPTION

During remanufactured rotary engine installation, the left rubber engine mount may interfere with an oil pan installation bolt. To prevent this concern, follow the procedures below.

INSTALLATION PROCEDURE

1. Verify concern.

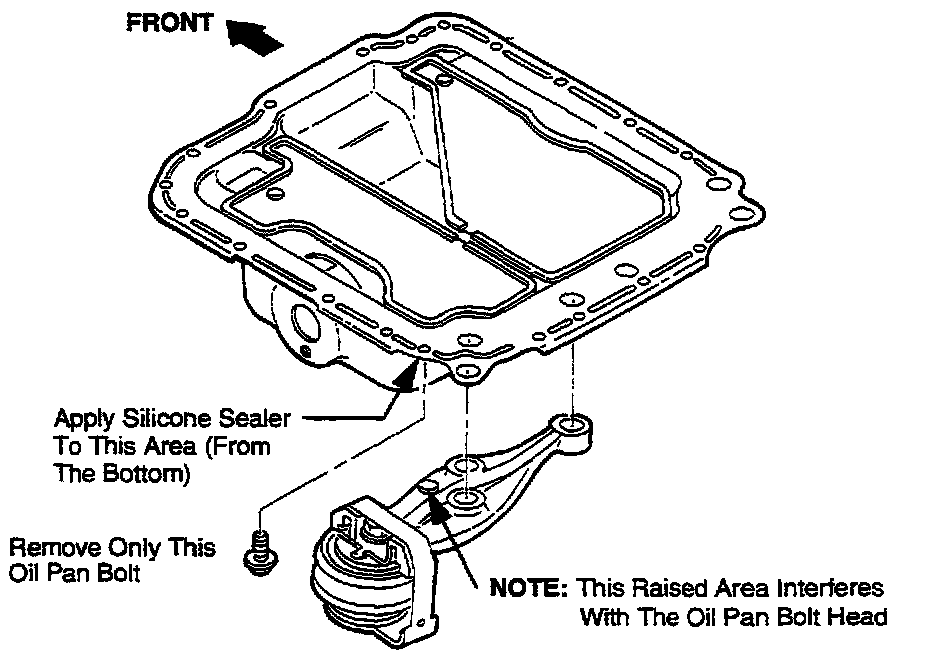

2. Remove oil pan bolt and discard. Refer to the illustration shown.

3. Apply silicone sealer to the bolt hole and pan area.

NOTE:
ThreeBond TB1207D, Loctite ultra Gray 599 (or equivalent).

4. Install engine mounts according to section C of the workshop manual.
Tightening Torque: 75 - 93 Nm (7.6 - 9.5 Kgfm, 55-68 ft-lbsf).

5. Operate engine to normal temperature and inspect oil pan area for leaks.

^ If no leaks are present, return vehicle to customer.

^ If leaks occur, repair as necessary.
