Home >> Mazda >> 1996 >> 626 L4-1991cc 2.0L DOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Trunk Lamp

Trunk Lamp

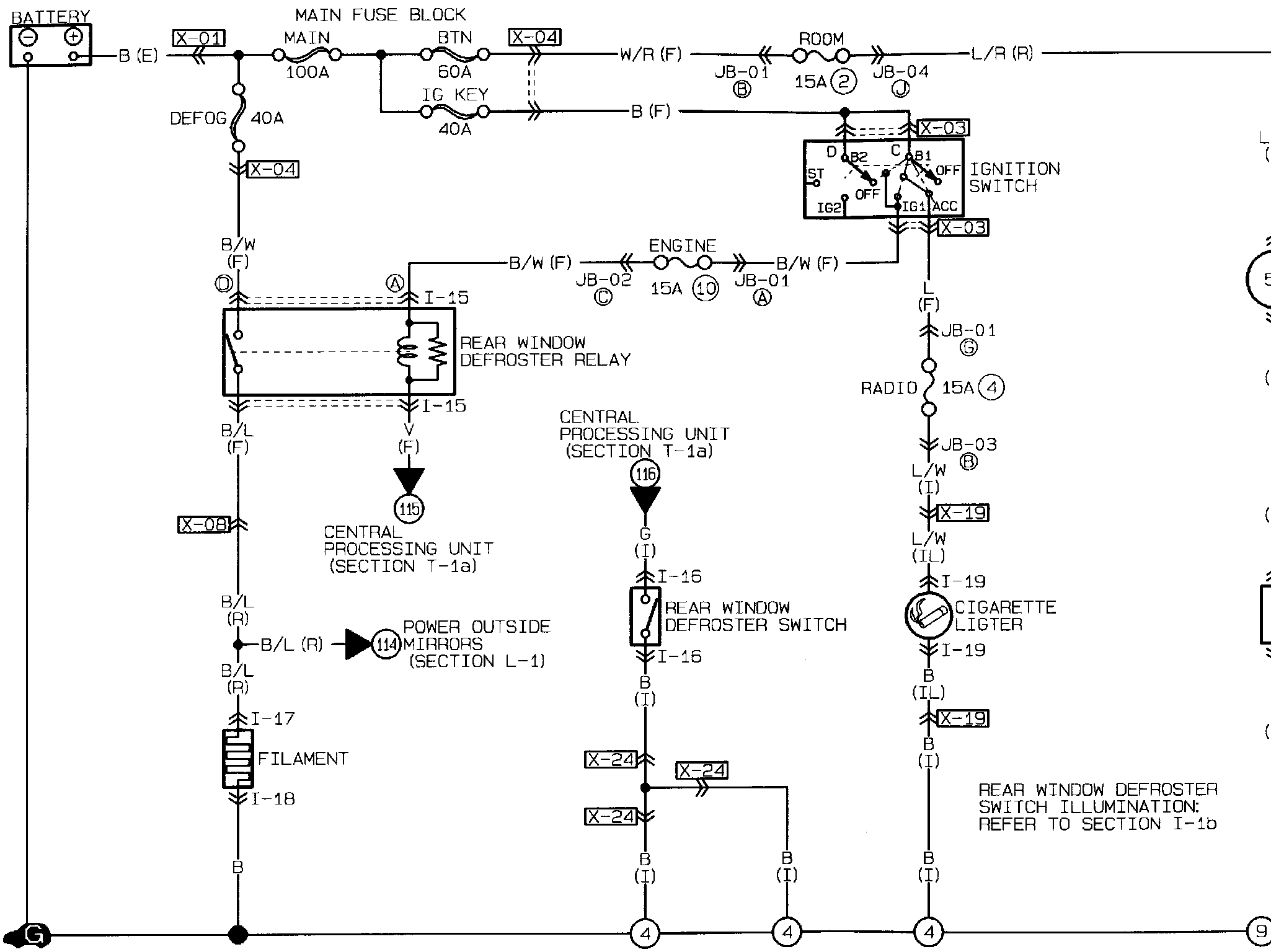

�A�rRear Window Defroster, Cigarette Lighter, Trunk Compartment Light:
