Radiator: Service and Repair
RADIATOR REMOVAL / INSTALLATION1. Disconnect the negative battery cable.
2. Drain the engine coolant.

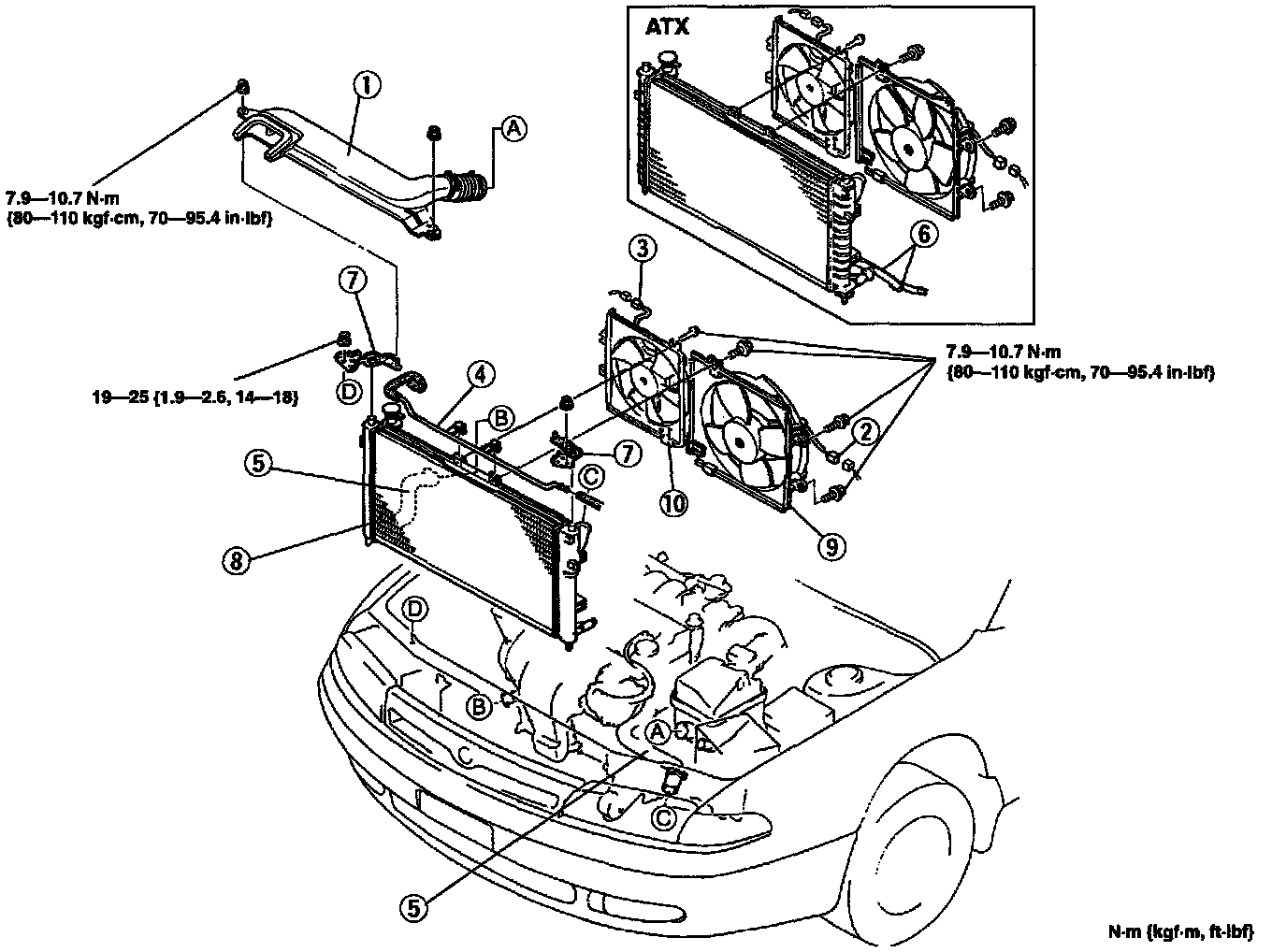

3. Remove in the order shown in the image.
4. Install in the reverse order of removal.
1. Fresh-air duct
2. Cooling fan motor connector
3. Condenser fan motor connector
4. Coolant reservoir pipe
5. Radiator hose (upper and lower)
6. Oil cooler hose (ATX)
7. Radiator bracket
8. Radiator
9. Cooling fan and radiator cowling assembly
10. Condenser fan and radiator cowling assembly
STEPS AFTER INSTALLATION
1. Fill the radiator with the specified amount and type of engine coolant.
2. Check for leaks.
