Oscilloscope Patterns and Waveforms

SOLENOID VALVES INSPECTION OF WAVE FORM
1. Connect the oscilloscope to the powertrain control module at terminals 2D and 2H.

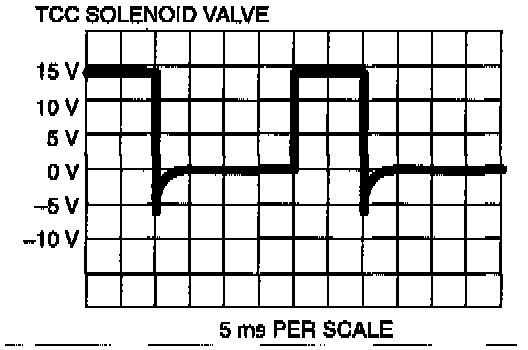

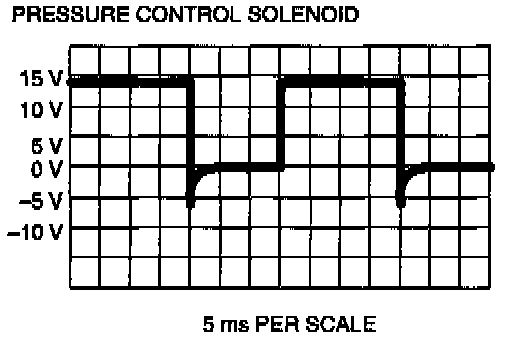

2. Inspect the wave form as shown in the figure.
