Home >> Mazda >> 1996 >> MX-5 Miata L4-1.8L DOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Charging System >> MT

MT

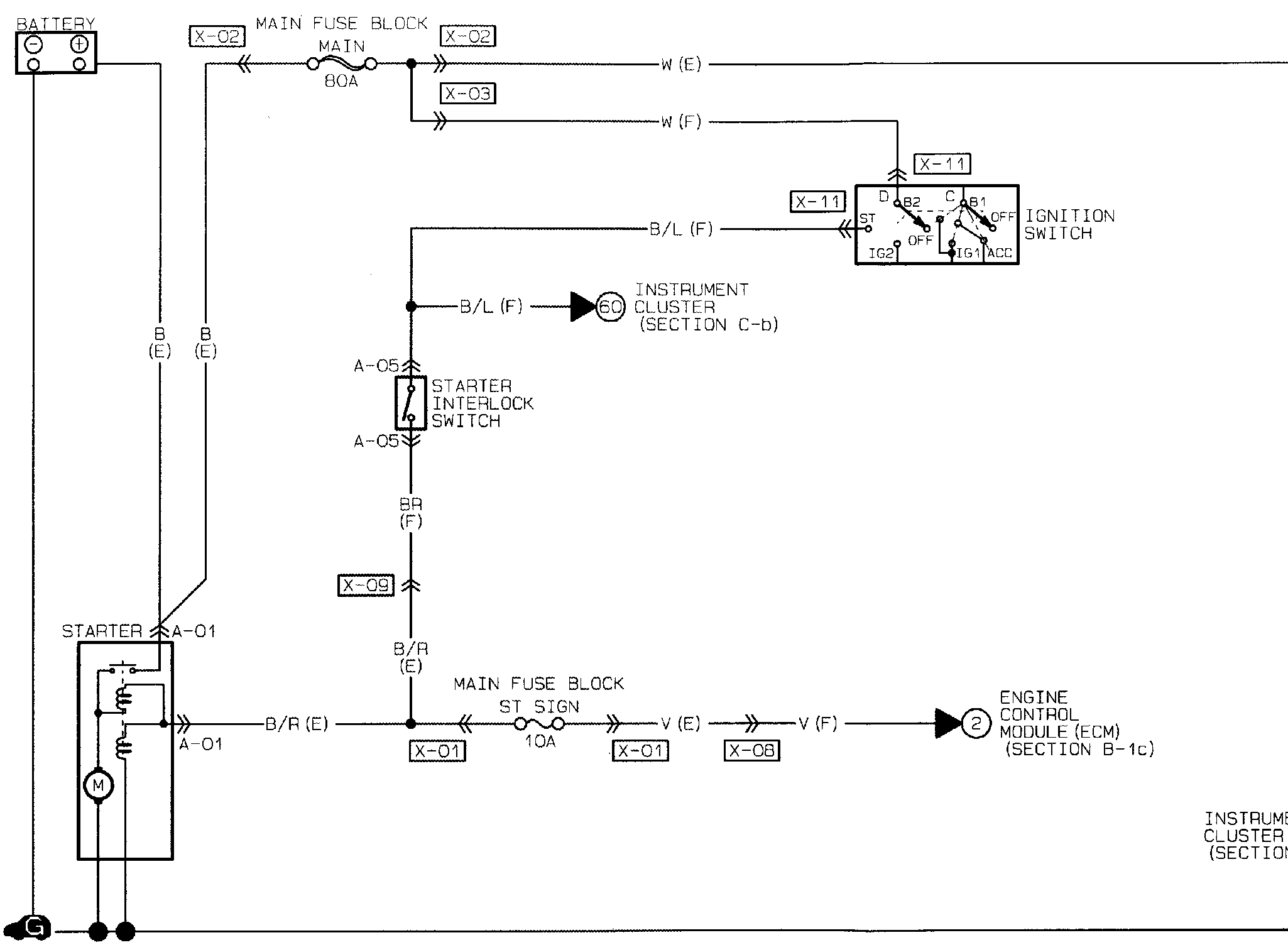

�� ]MT Charging System, Starting System:
