Indicator Panel

1. Remove rear console, then shift selector lever to P position.
2. Loosen indicator screws, then align alignment hole in slider with hole in indicator panel. Install suitable heavy-gauge wire to hold slider.
3. Tighten indicator screws in specified order, Fig. 3.

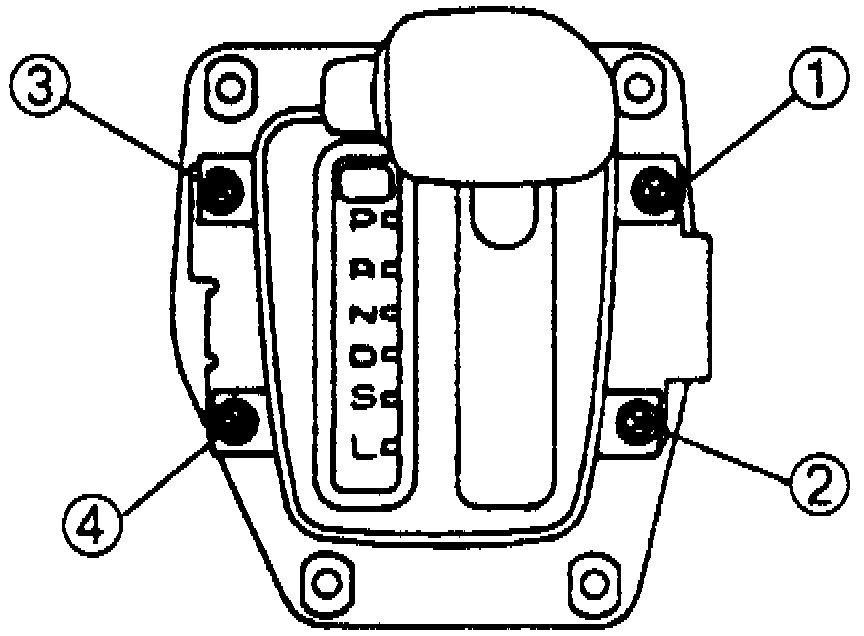

Fig. 3 Indicator Screw Tightening Sequence:

4. Remove wire from slider and verify selector lever properly aligns with indicator in each range.
5. Verify correct operation of emergency override button, then install rear console.
