Home >> Mazda >> 1996 >> MX-6 V6-2496cc 2.5L DOHC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Common Connector List >> X-09

X-09

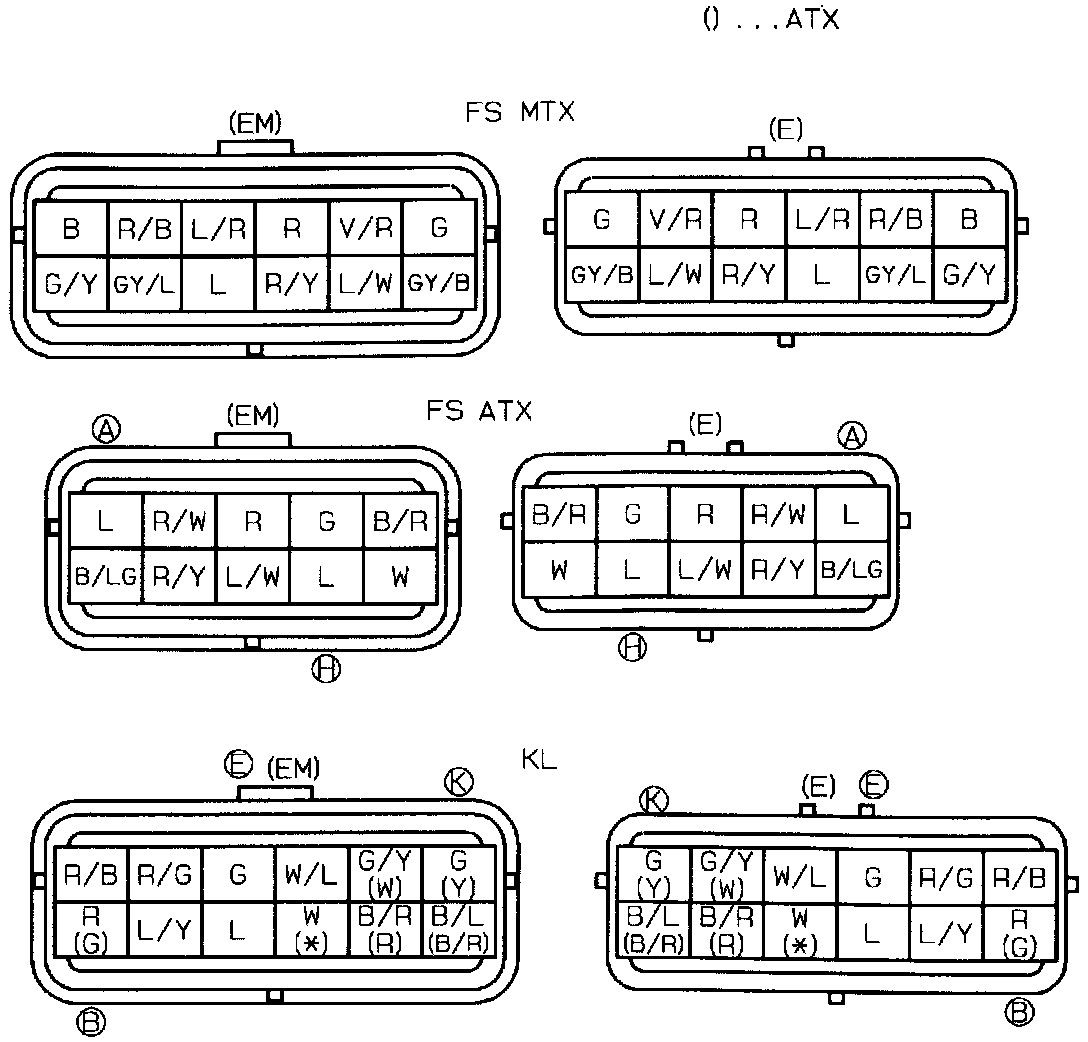

X-09 Emission (EM) -Engine (E):
