Mazda
>>
1996
>>
Millenia V6-2255cc 2.3L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>

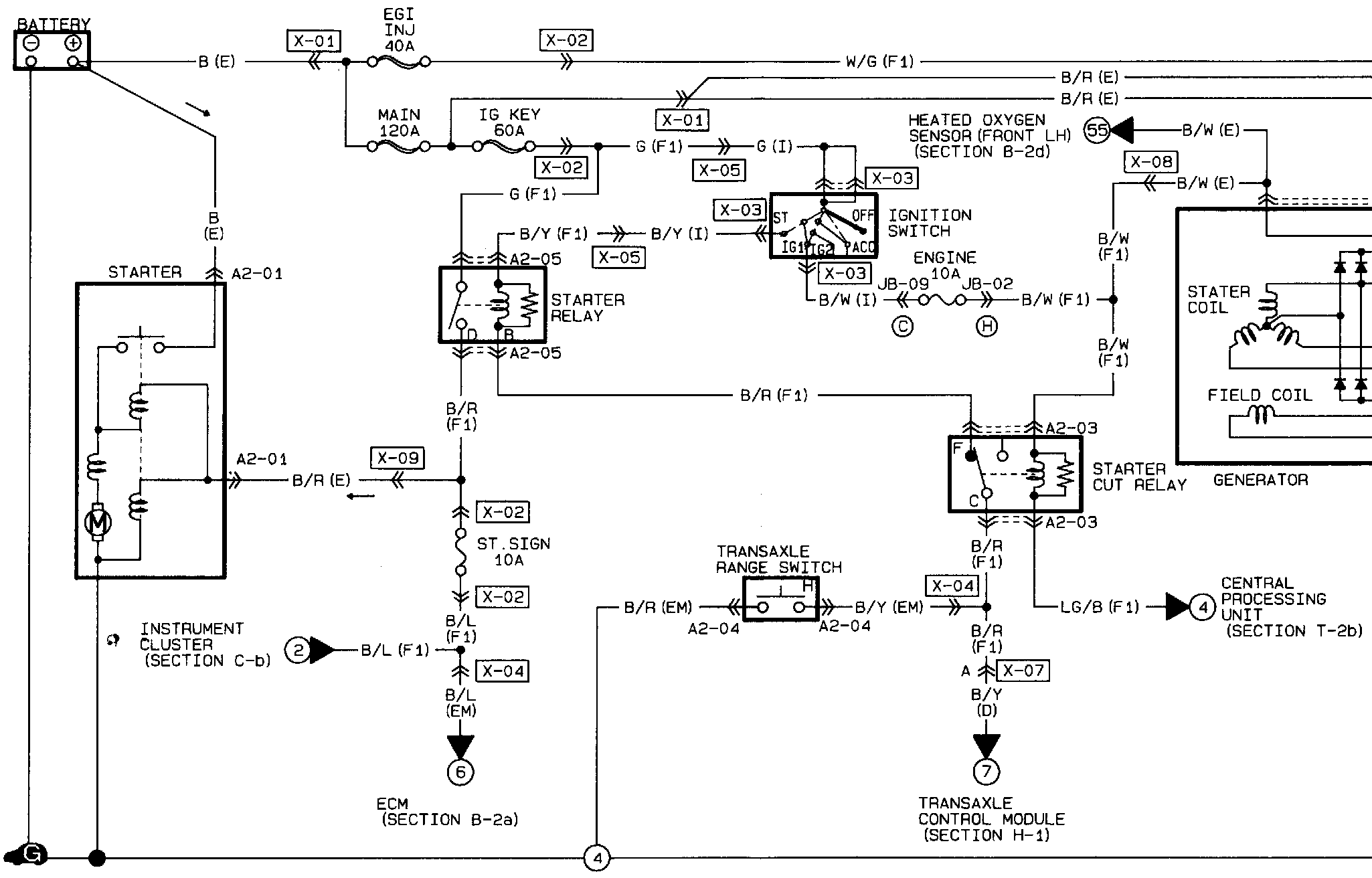

Charging System
Charging System
�]Charging System, Starting System:
