Operation CHARM: Car repair manuals for everyone.
Home >> Mazda >> 1997 >> 626 DX L4-2.0L DOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptom Charts >> Idle Fluctuates

Idle Fluctuates

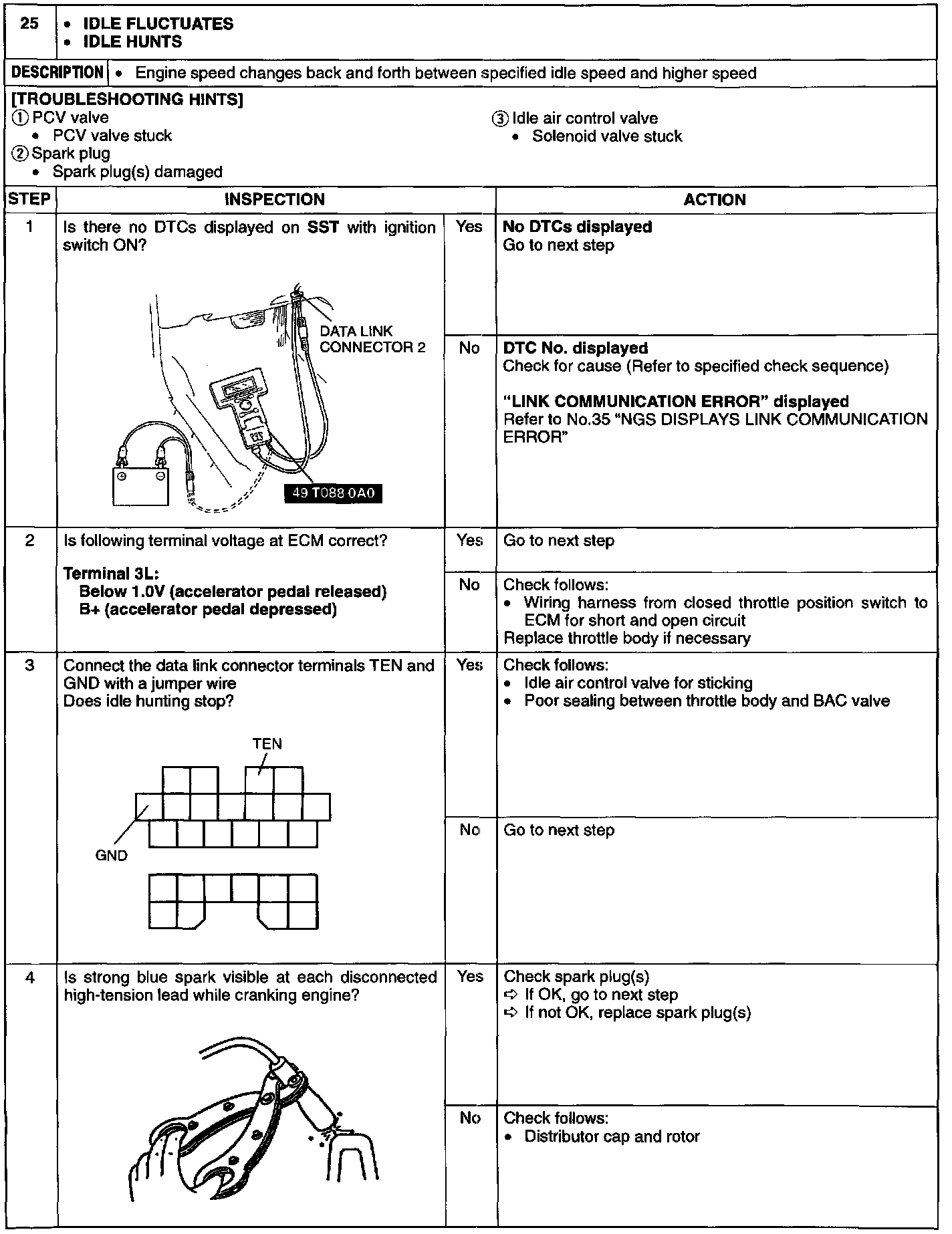

# 25 - Idle Fluctuates (1 Of 2):




# 25 - Idle Fluctuates (1 Of 2)

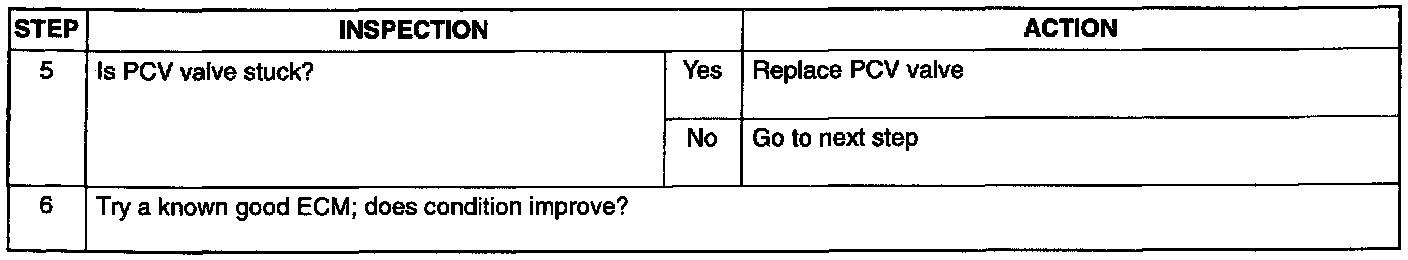

# 25 - Idle Fluctuates (2 Of 2):




# 25 - Idle Fluctuates (2 Of 2)
