Short Bar

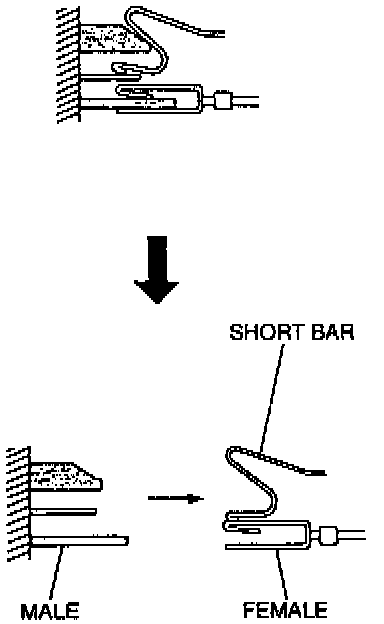

Short Bar:

^ A short bar is used to short between two terminals when a connector is disconnected.

:installed on the vehicle harness side

:installed on the part side

^ There are short bars in four locations in this system: A, B, C, and D.

1. Short bars A, B, and C prevent the air bag modules from activating when the connector is disconnected.
2. Short bar D keeps the air bag system warning light illuminated when the ignition switch is at ON and the SAS unit connector is disconnected.
