Water Pump: Service and Repair

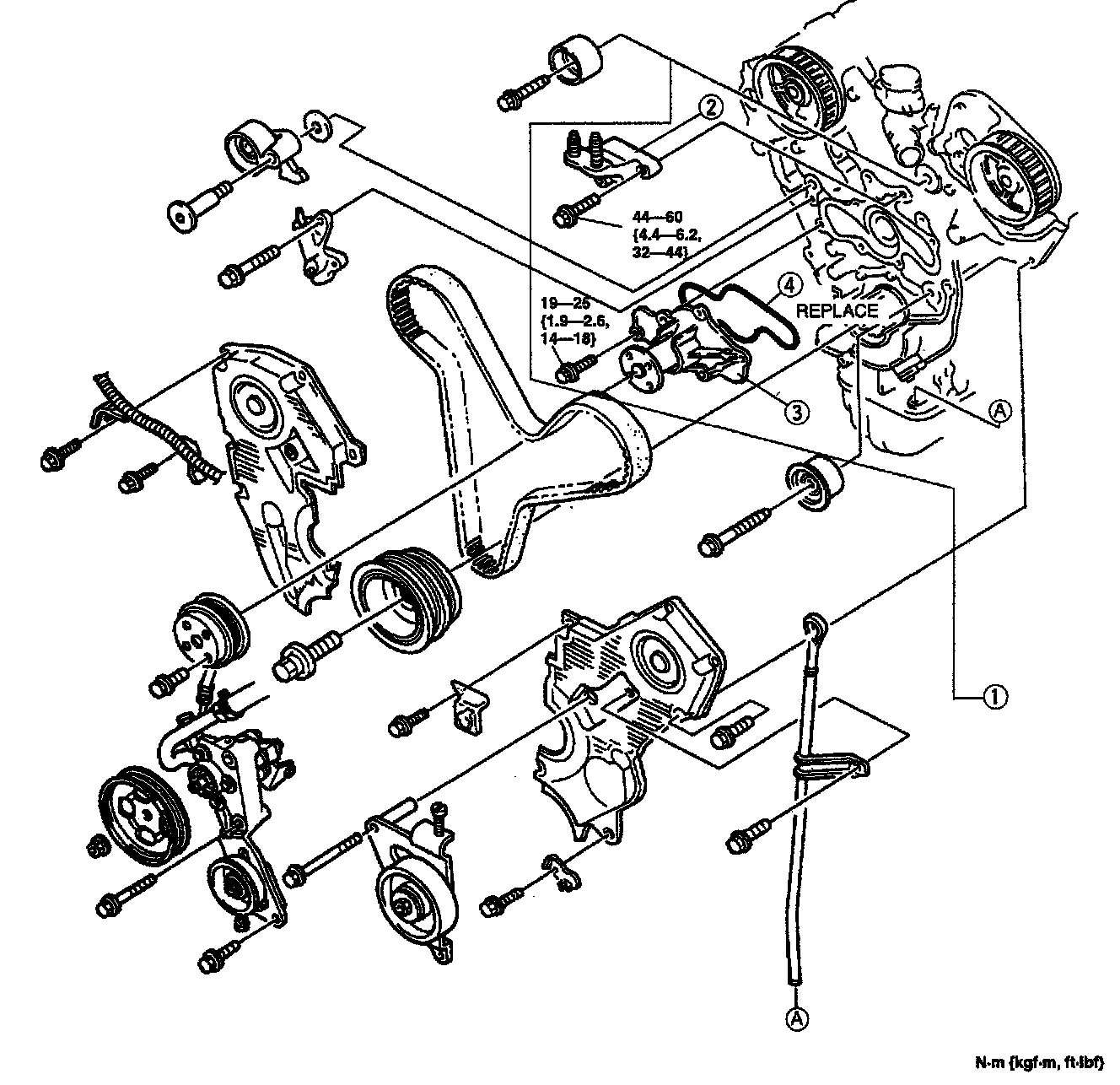

Legend
1. Timing belt
2. No.3 engine mount bracket
3. Water pump assembly
4. Water pump rubber seal

REMOVAL / INSTALLATION
1. Disconnect the negative battery cable.
2. Drain the engine coolant.
3. Remove in the order shown in the image.
4. Install in the reverse order of removal.

Steps After Installation
1. Fill the radiator with the specified amount and type of engine coolant.
2. Check for leaks.
