Pinpoint Test 12

Flowchart No.12 Symptom Seat belt warning alarm sounds; warning light does not illuminate

Possible cause
^ Burnt seat belt warning light bulb
^ Open or short circuit in wiring harness

Remedy
1. Remove the instrument cluster.

Bulb Inspection:

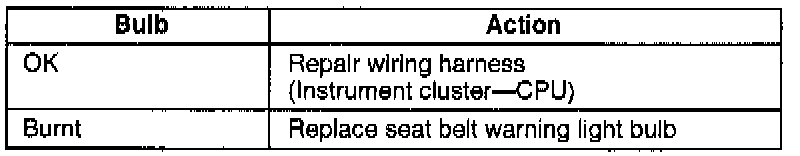

Action Chart:

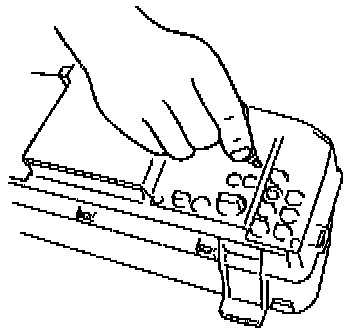

2. Remove and check the seat belt warning light bulb.
