Pinpoint Test 1

Flowchart No.1 Symptom TNS and headlights do not illuminate

Possible cause
^ Open or short circuit in wiring harness
^ Poor connection of connector

Terminal Identification:

Action Chart:

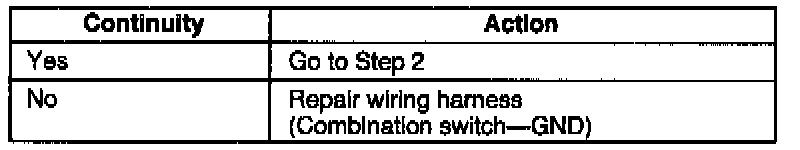

Step 1
Check for continuity between terminal E(B) of the combination switch connector and ground.

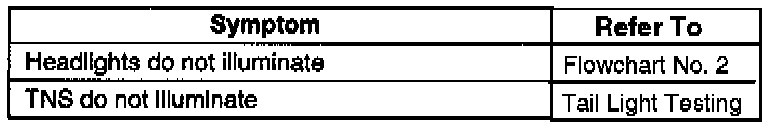

Step 2
Refer to the appropriate flowchart.
