Operation CHARM: Car repair manuals for everyone.
Home >> Mazda >> 1997 >> 626 LX L4-2.0L DOHC >> Repair and Diagnosis >> Body and Frame >> Locks >> Keyless Entry >> Diagrams >> Electrical Diagrams >> Power Door Locks With Keyless Entry

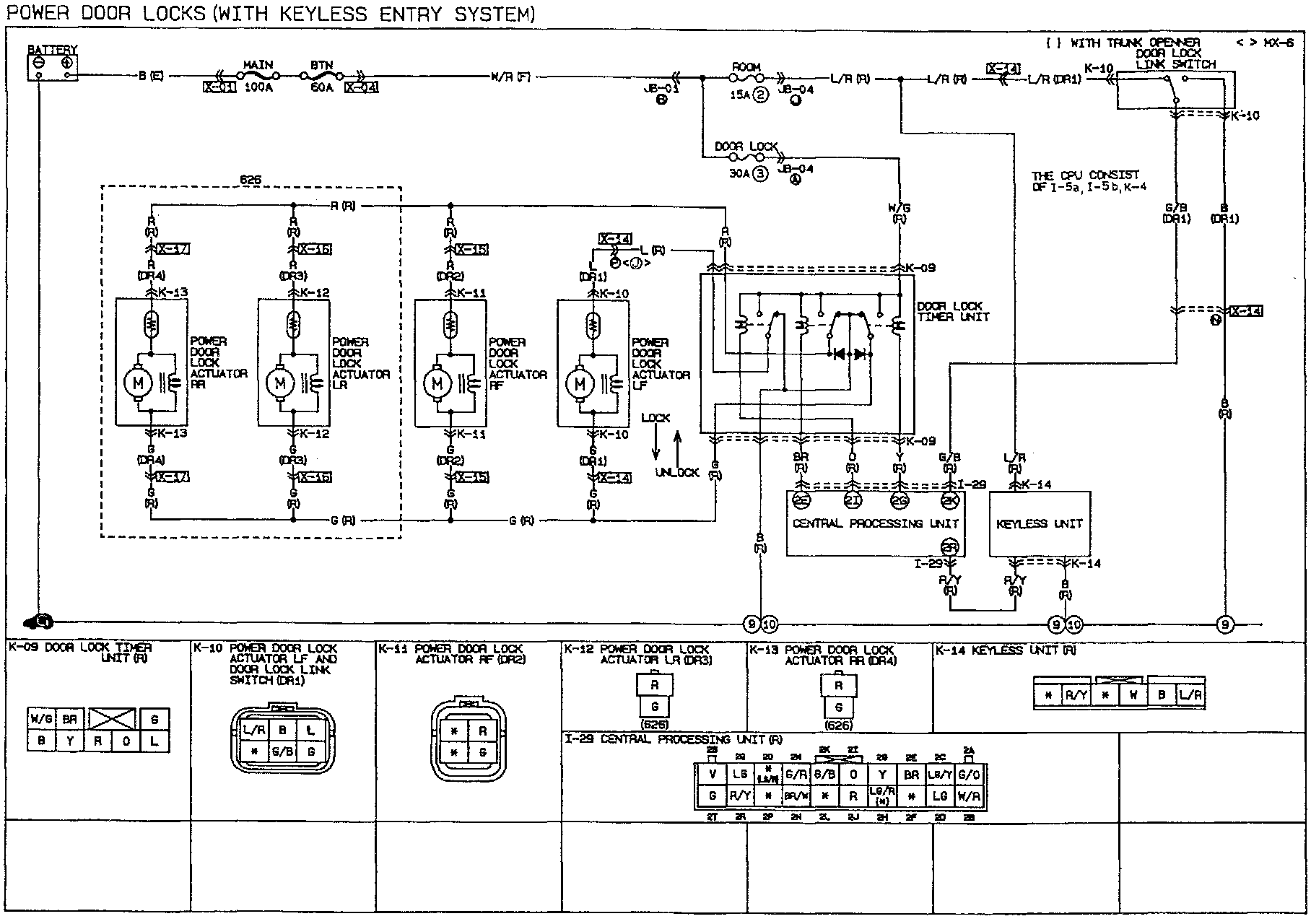

Power Door Locks With Keyless Entry
