Seats: Description and Operation

Description

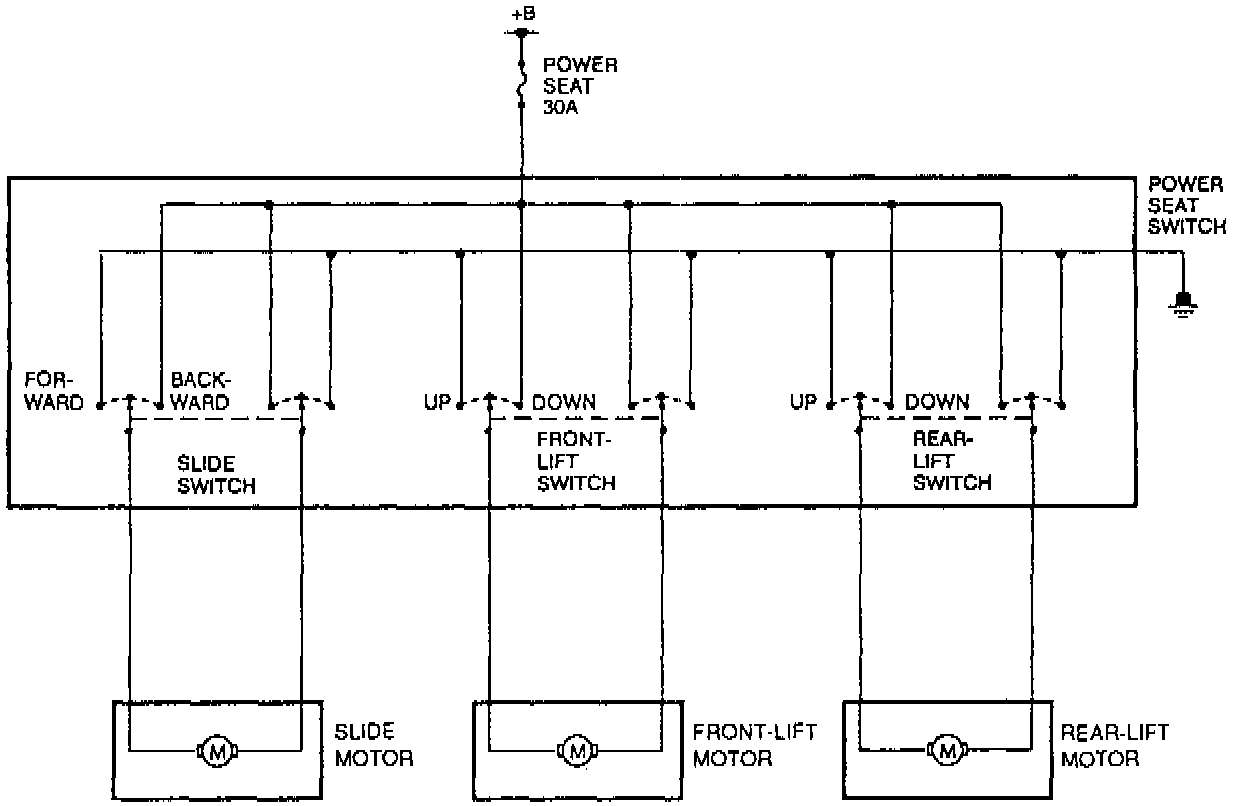

The power seat system consists of the power seat switch, slide motor, front-lift motor, and rear-lift motor.

System Operation
1. Slide
^ When the slide switch is pushed forward, current flows through the slide switch and motor. The motor turns in the forward direction.
^ When the slide switch is pushed backward, current flows through the slide switch and motor. The motor turns in the backward direction.

2. Front-lift
^ When the front-lift switch is pulled up, current flows through the front-lift switch and motor. The motor turns in the up direction.
^ When the front-lift switch is pushed down, current flows through the front-lift switch and motor. The motor turns in the reverse direction.

3. Rear-lift
^ When the rear-lift switch is pulled up, current flows through the rear-lift switch and motor. The motor turns in the up direction.
^ When the rear-lift switch is pushed down, current flows through the rear-lift switch and motor. The motor turns in the reverse direction.
