Home >> Mazda >> 1997 >> 626 LX L4-2.0L DOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Automatic Transmission/Transaxle >> System Diagram >> Automatic Transmission Control System >> B-1a

B-1a

Engine Control System (ATX), Ignition System (ATX):

Engine Control System (ATX), Ignition System (ATX)- Connectors:

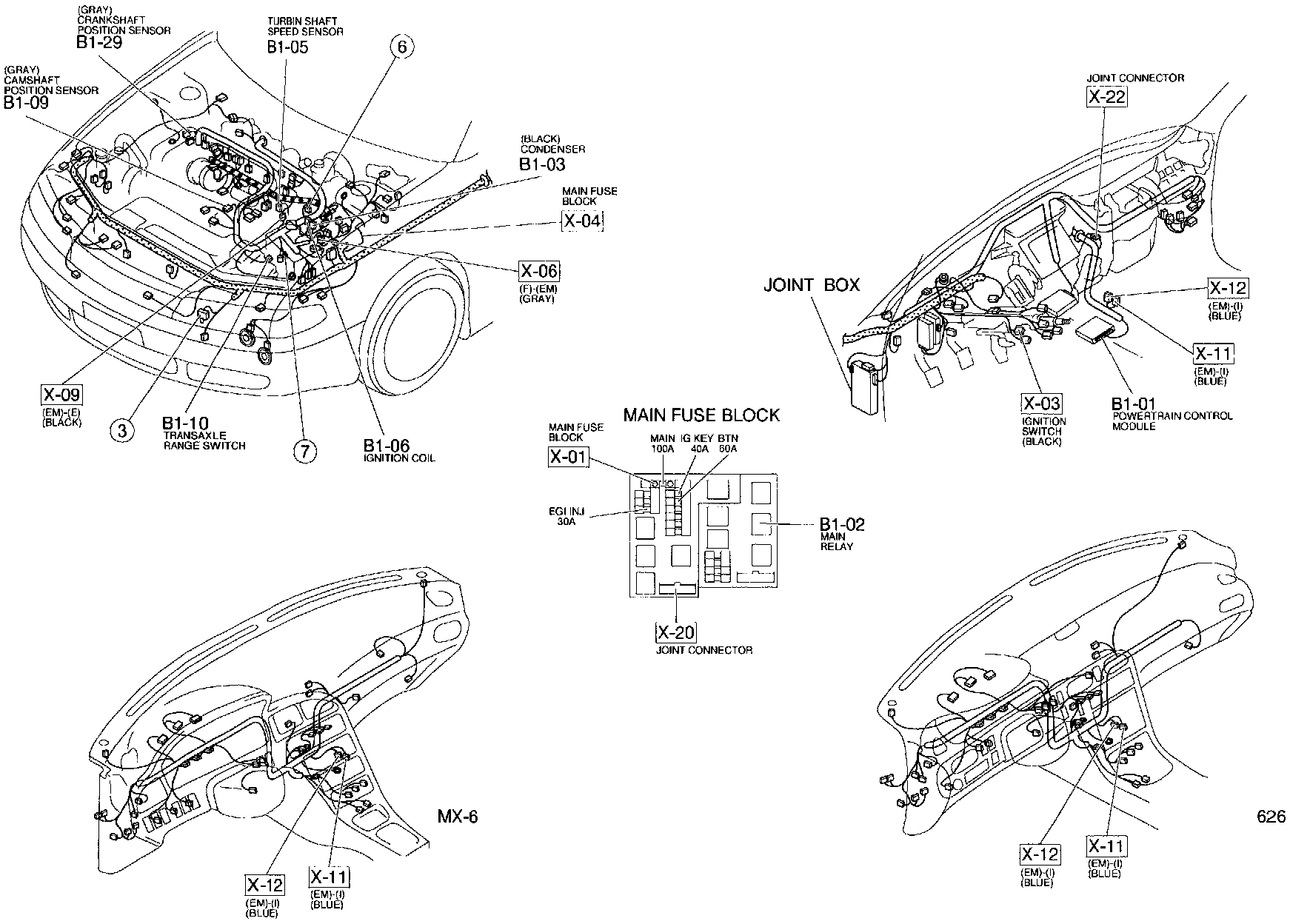

Connector Locations:
