Marker Lamp: Service and Repair





Removal / Installation

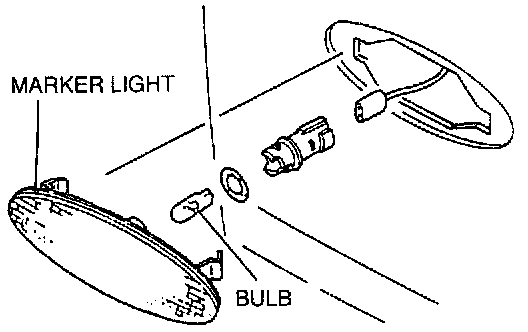

1. Insert a flathead screwdriver which has been wrapped in tape under the front side of the front side marker light and pry it out.
2. Remove the bulb.
3. Install in the reverse order of removal.

Bulb: 3.8W (194)
