Pinpoint Test 3

Flowchart No.3 Symptom hazard light function does not operate (turn signal function operates)

Possible Cause
^ Damaged hazard warning switch
^ Damaged flasher unit
^ Open or short circuit in wiring harness Poor connection of connector

Ohmmeter Connection:

Action Chart:

Step 1
1. Remove the hazard warning switch.

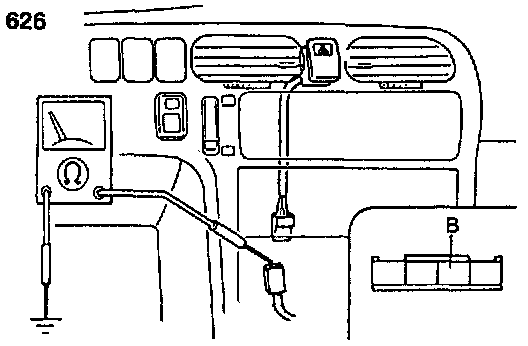

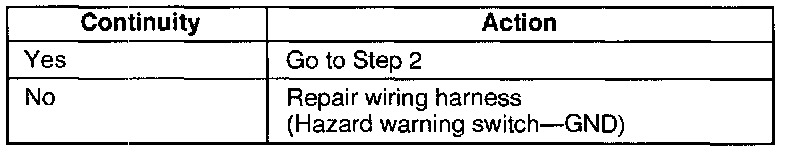

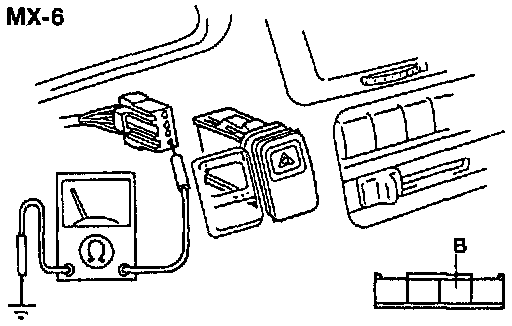

2. Check for continuity between terminal B (B) of the hazard warning switch connector and ground.

Terminal Identification:

Reference:

Step 2

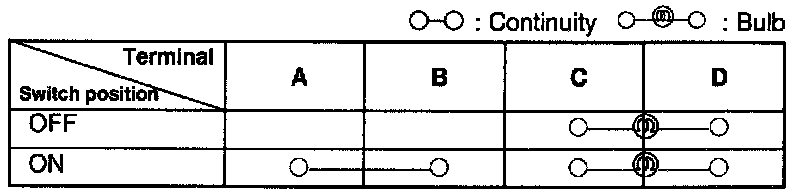

1. Check for continuity between the terminals of the hazard warning switch.
2. If correct, reconnect the connector and go to Step 3.
3. If not as specified, replace the hazard warning switch.

Ohmmeter Connection:

Action Chart:

Step 3
1. Turn the hazard warning switch on.

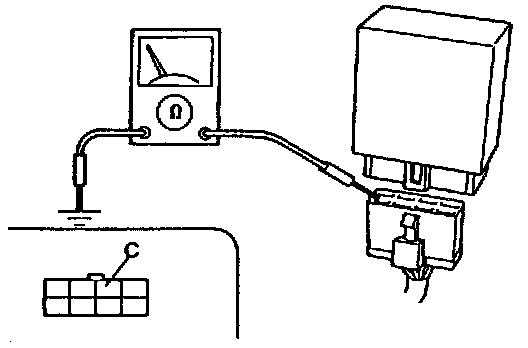

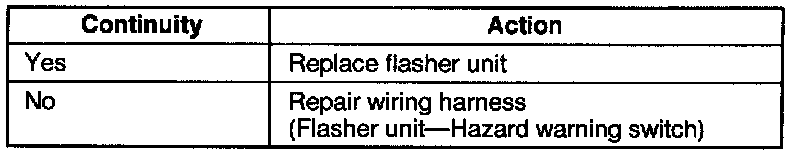

2. Check for continuity between terminal G (G/R) of the flasher unit connector and ground.
