Pinpoint Test 4

Flowchart No.4 Symptom Left or right turn signal function does not operate (hazard light function operates)

Possible Cause
^ Damaged combination switch
^ Damaged flasher unit
^ Open or short circuit in wiring harness Poor connection of connector

Terminal Identification:

Action Chart:

Step 1
1. Remove the column cover.
2. Turn the ignition switch to ON.
3. Turn the turn switch on (left or right).

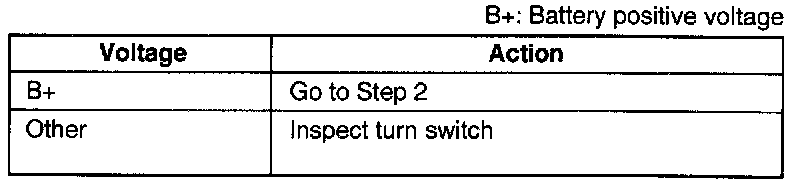

4. Measure the voltage at terminal G (G/Y) or H (B/R) of the combination switch connector.

Voltmeter Connection:

Action Chart:

Step 2
1. Turn the turn switch on (left or right).

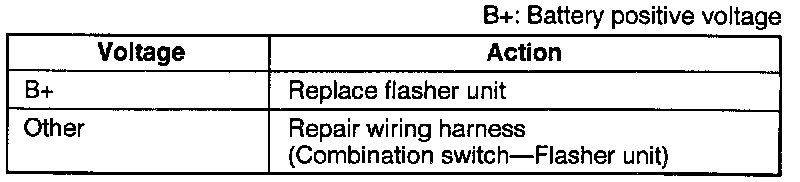

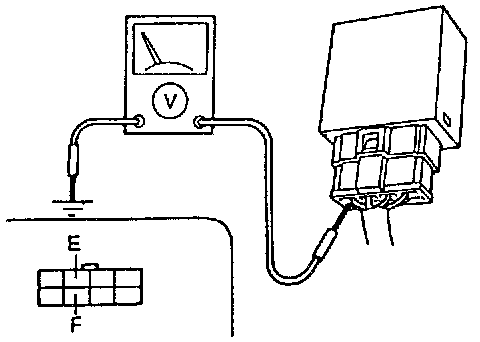

2. Measure the voltage at terminal F (G/Y) or E (B/R) of the flasher unit connector.
