Blower Motor Relay: Testing and Inspection

Inspection

Blower relay

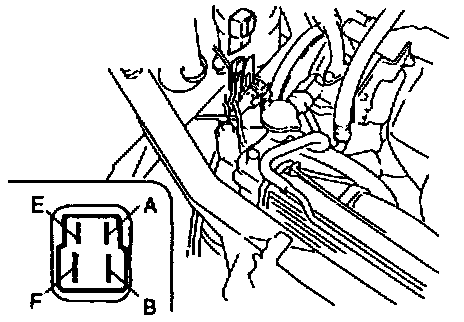

Blower Motor Relay:

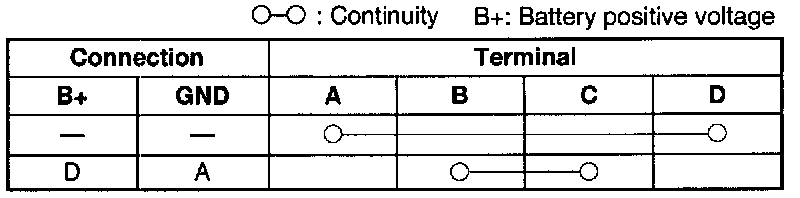

Blower Motor Relay Continutiy:

KL engine

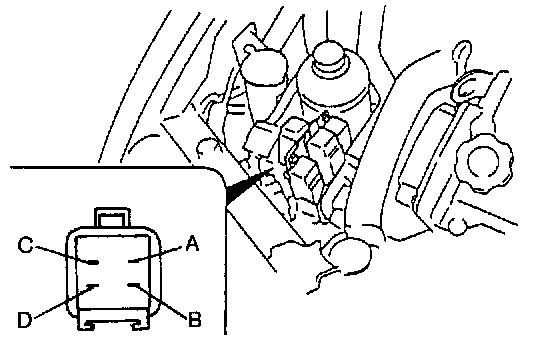

Blower Motor Relay:

Blower Motor Relay Continuity:

FS engine

1. Remove the relay.
2. Connect battery positive voltage and check for continuity between the relay terminals as indicated above.
3. If not as specified, replace the relay.
