Control Arm: Service and Repair

REMOVAL
1. Jack up the front of the vehicle and support it on safety stands.

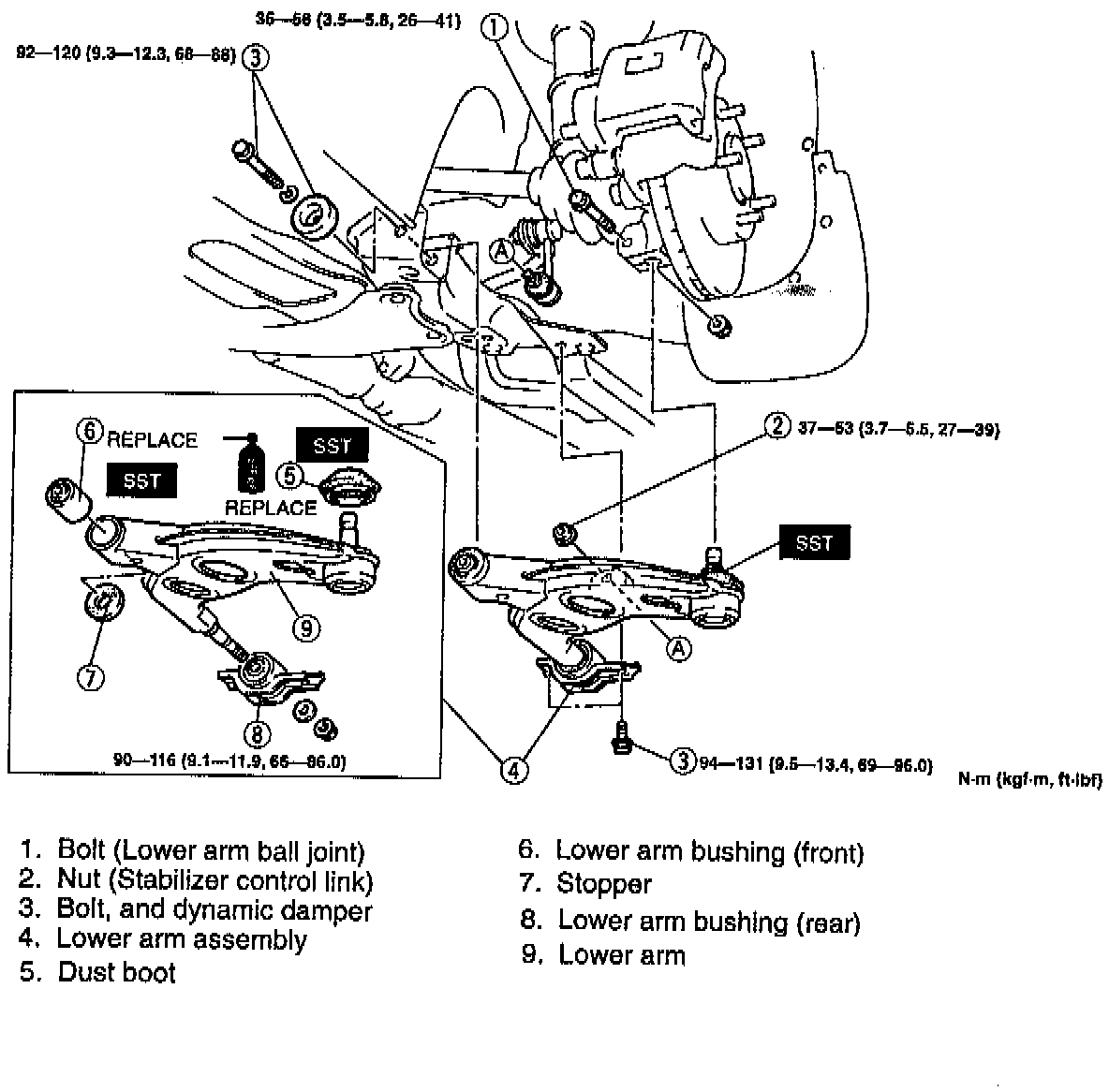

2. Remove in the order shown in the illustration, referring to the following notes:





Dust Boot

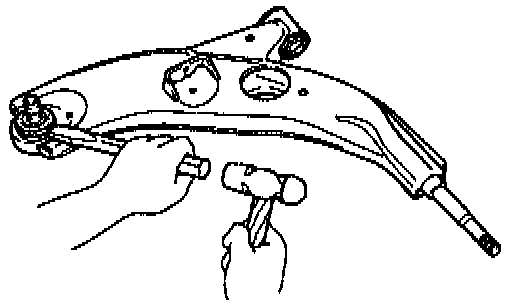

^ Carefully remove the dust boot with a chisel.





Lower Arm Bushing (Front)
A. Cut away the projecting rubber of the lower arm bushing.

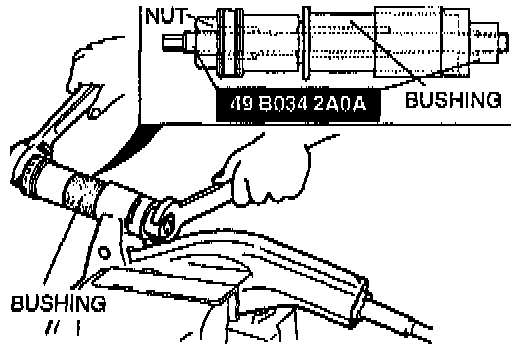

B. Set the Special Service Tool (SST) onto the lower arm, and remove the bushing.





INSPECTION

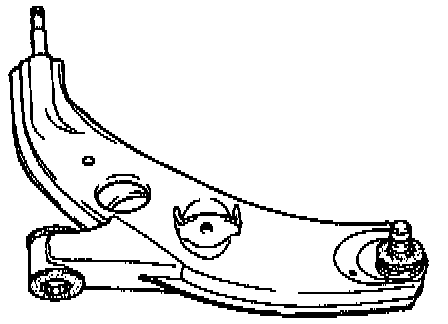

Lower Arm Assembly
Inspect all parts and repair or replace as necessary.
1. Lower arm for damage and cracks
2. Bushings for deterioration and wear
3. Dust boot for damage
4. Bail joint for looseness and damage If the ball joint needs to be replaced, replace the lower arm.

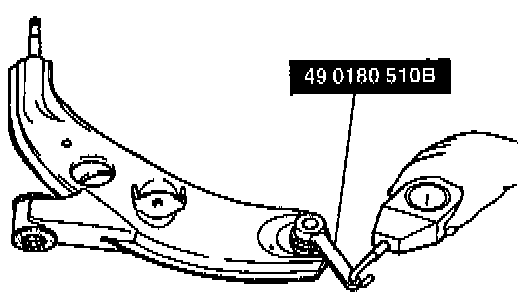

5. Ball joint preload. Move the ball joint back and forth 5 or 6 times, then attach the SST to the ball stud, and measure the preload with a pull scale.
^ Ball joint preload: 1.0 - 4.9 Nm (8.6 - 43 inch lbs.)
^ Pull scale reading: 9.8 - 9 N (2.2 - 11.0 lbs.)

INSTALLATION
1. Install in the reverse order of removal, referring to the following notes:





Lower Arm Bushing (Front)

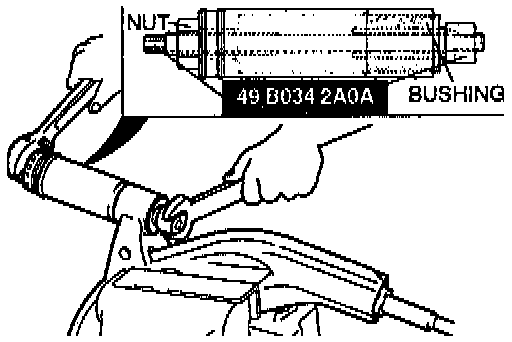

^ Install the new bushing, and pull it into the lower arm by using the SST.





Dust Boot
A. Wipe the grease off the ball stud.
B. Fill the inside of the new dust boot with grease.

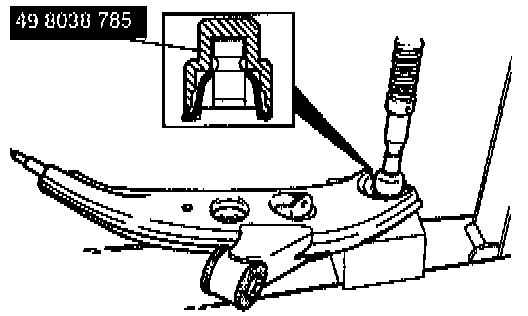

C. Press the boot onto the ball joint by using the SST.
D. Wipe away the excess grease.

2. Tighten the lower arm bolts to just under the specified torque. Tighten all other nuts and bolts to the specified torque.
3. Lower the vehicle.
4. With the vehicle unloaded, tighten the lower arm bolts.
