Home >> Mazda >> 1997 >> 626 LX V6-2.5L DOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Automatic Transmission/Transaxle >> System Diagram >> Automatic Transmission Control System >> B-3d

B-3d

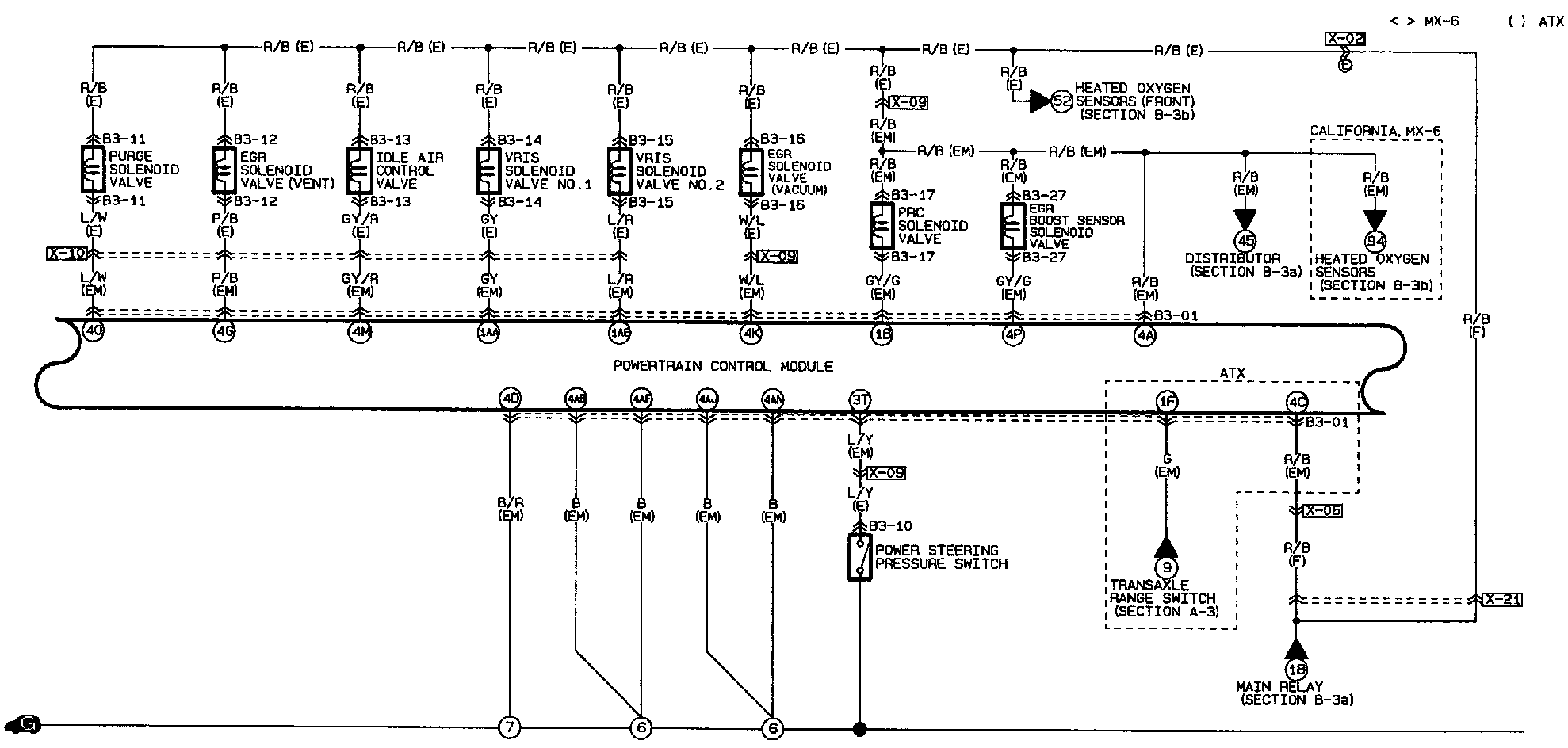

Engine Control System:

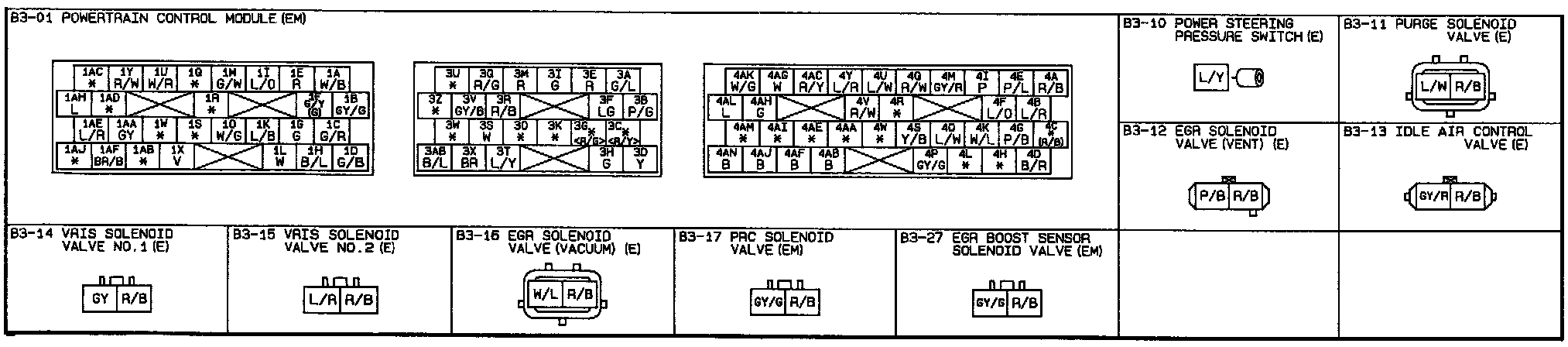

Engine Control System- Connectors:

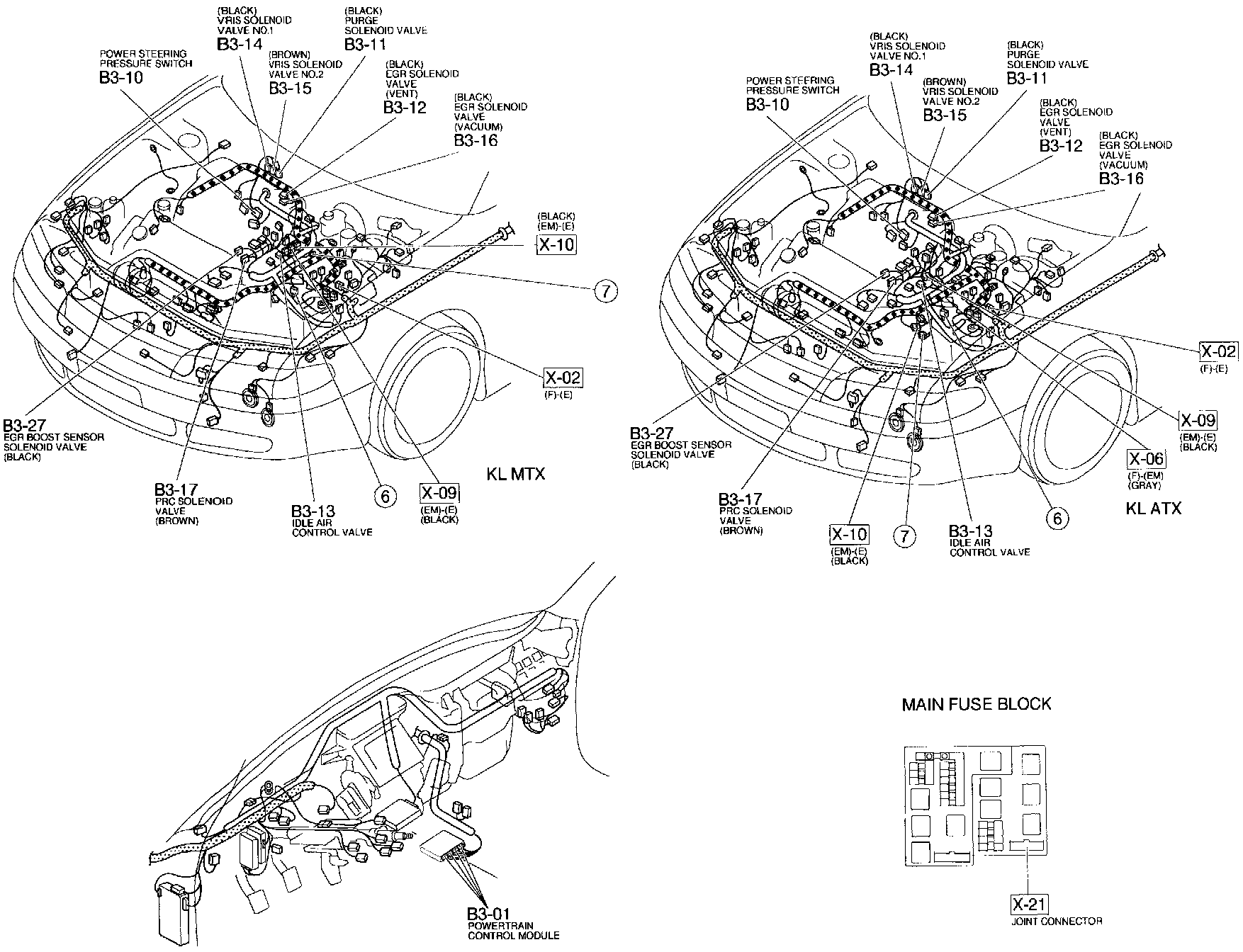

Connector Locations:
