Headlamp: Service and Repair

626:

MX-6:

Removal / Installation

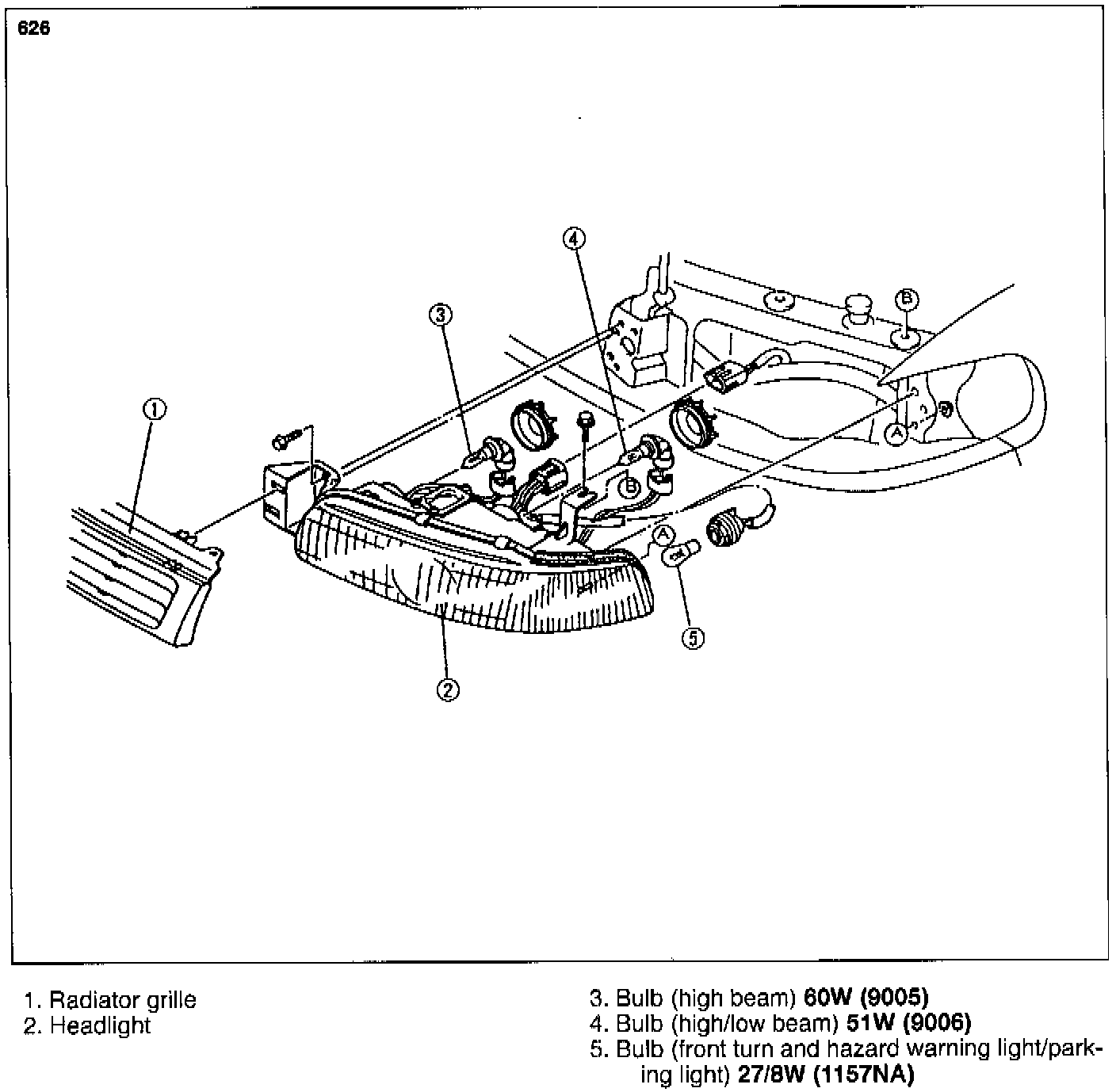

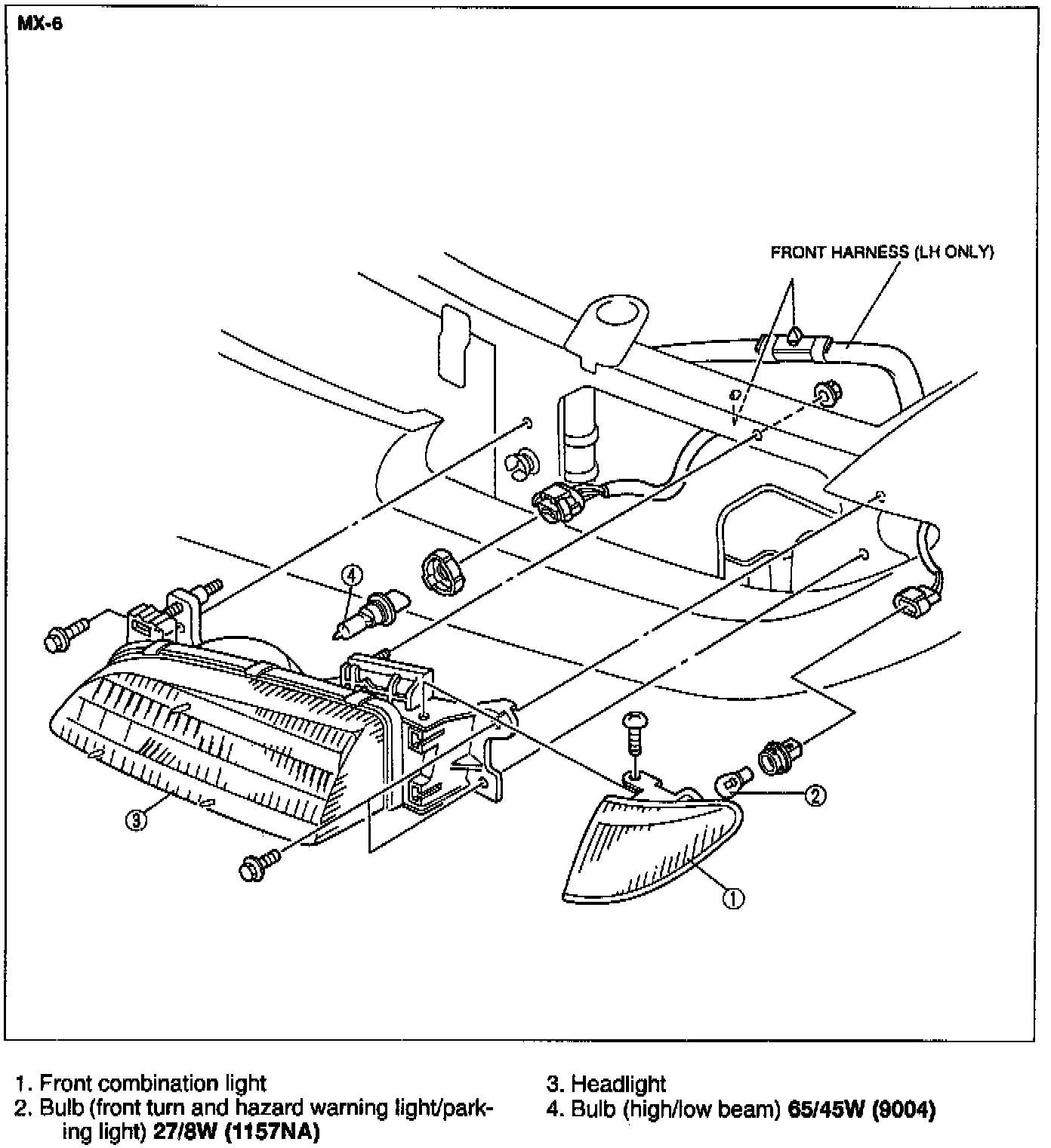

1. Remove in the order shown in the figure.
2. Install in the reverse order of removal.

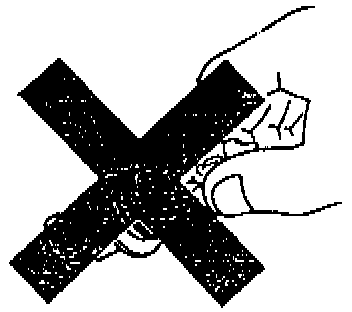

WARNING: If the glass surface of a halogen bulb is touched with bare hands, natural body oil could cause the bulb to overheat when it is lit. Because a halogen bulb contains pressurized gas, this overheating will cause the bulb to burst. The flying glass may seriously injure you. Hold the metal flange, not the glass, when replacing the bulb.
